630-W25 Series
Manufacturer: EDAC Inc.
Beta
⌘K
630W (WATERPROOF) SERIES RIGHT A
| Part | Contact Material | Dielectric Material | Color | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination | Backset Spacing | Backset Spacing | Flange Feature | Connector Style | Material Flammability Rating | Current Rating (Amps) | Number of Positions | Shell Size, Connector Layout | Shell Size, Connector Layout [x] | Contact Finish Thickness | Contact Finish Thickness | Contact Type | Contact Finish | Ingress Protection | Connector Type | Number of Rows [custom] | Shell Material, Finish | Features | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

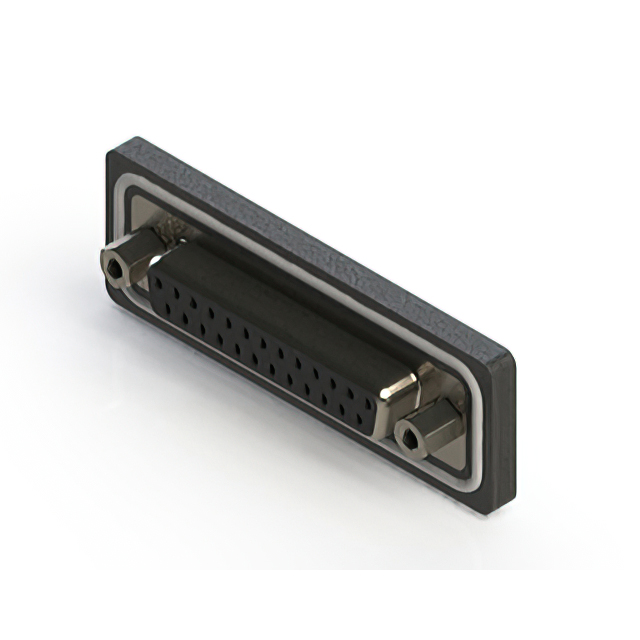

 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | 85 °C | -25 °C | Right Angle Through Hole | Solder | 10.3 mm | 0.406 in | 4-40 Mating Side Female Screwlock | D-Sub | UL94 V-0 | 5 A | 25 | B DB | 3 | 30 Áin | 0.76 Ám | Signal | Gold | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 2 | Nickel Plated Steel | Shielded | |
 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | 85 °C | -25 °C | Right Angle Through Hole | Solder | 10.3 mm | 0.406 in | 4-40 Mating Side Female Screwlock | D-Sub | UL94 V-0 | 5 A | 25 | B DB | 3 | Signal | Gold | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 2 | Nickel Plated Steel | Shielded | Flash | ||

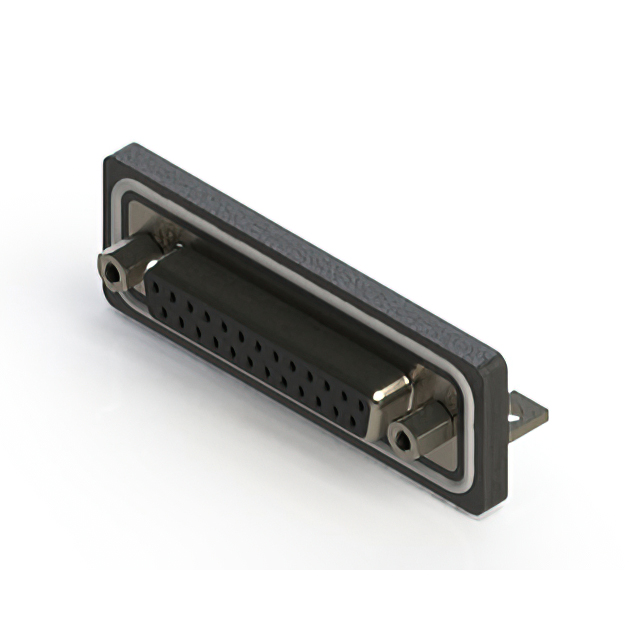

 EDAC Inc. | Copper Alloy | Polybutylene Terephthalate (PBT) Glass Filled | Black | 85 °C | -25 °C | Right Angle Through Hole | Solder | 10.3 mm | 0.406 in | 4-40 Mating Side Female Screwlock | D-Sub | UL94 V-0 | 5 A | 25 | B DB | 3 | 15 µin | 0.38 µm | Signal | Gold | IP67 - Dust Tight Waterproof | Receptacle Female Sockets | 2 | Nickel Plated Steel | Mounting Brackets Shielded |
