PM208MBAL Series
Manufacturer: Anderson Power Products, Inc.
Beta
⌘K

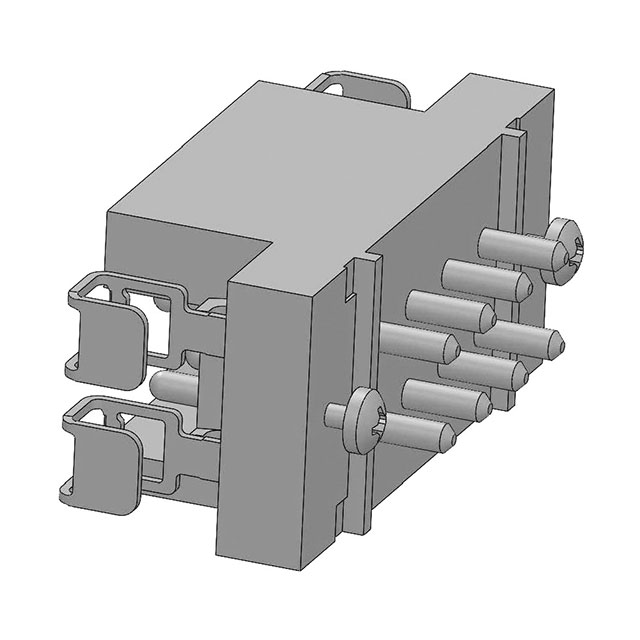

POWERMOD 2X8 PIN STRAIGHT PCB 7M
| Part | Features | Contact Finish - Mating | Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Connector Type | Shrouding | Contact Type | Style | Number of Positions Loaded | Contact Shape | Voltage Rating | Insulation Material | Current Rating (Amps) | Fastening Type | Pitch - Mating | Pitch - Mating | Termination | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Length - Post [x] | Contact Length - Post [x] | Insulation Color | Contact Finish - Post [custom] | Row Spacing - Mating | Row Spacing - Mating | Material Flammability Rating | Number of Positions | Insulation Height [custom] | Insulation Height [custom] | Number of Rows [custom] | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Anderson Power Products, Inc. | Mounting Hardware | Gold | Copper Alloy | 180 °C | -55 C | Header | Shrouded - 2 Wall | Male Pin Power | Board to Board Cable | All | Circular | 600 V | Polyphenylene Sulfide (PPS) | 30 A | Latch Lock | 0.197 " | 5 mm | Solder | 0.25 µm | 10 µin | 3.81 mm | 0.15 in | Black | Tin Alloy | 0.197 in | 5 mm | UL94 V-0 | 8 | 15.24 mm | 0.6 in | 2 | Through Hole |
