DRV8833C Series

10.8-V, 2-A dual H-bridge motor driver with current regulation

Catalog

10.8-V, 2-A dual H-bridge motor driver with current regulation

Part	Motor Type - AC, DC	Output Configuration	Supplier Device Package	Current - Output	Function	Voltage - Supply [Min]	Voltage - Supply [Max]	Applications	Package / Case	Mounting Type	Technology	Interface	Motor Type - Stepper	Voltage - Load [Min]	Voltage - Load [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case [x]	Package / Case [y]	Package / Case	Secondary Attributes	Type	Primary Attributes	Utilized IC / Part	Embedded	Supplied Contents
Texas Instruments DRV8833CRTET	Brushed DC	Half Bridge (4)	16-WQFN (3x3)	600 mA	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-WFQFN Exposed Pad	Surface Mount	Power MOSFET	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C
Texas Instruments DRV8833CRTER	Brushed DC	Half Bridge (4)	16-WQFN (3x3)	600 mA	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-WFQFN Exposed Pad	Surface Mount	Power MOSFET	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C
Texas Instruments DRV8833RTYT	Brushed DC	Half Bridge (4)	16-QFN (4x4)	1.5 A	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-WQFN Exposed Pad	Surface Mount	NMOS	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C
Texas Instruments DRV8833PW	Brushed DC	Half Bridge (4)	16-TSSOP	1.5 A	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-TSSOP	Surface Mount	NMOS	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C	0.173 in	4.4 mm
Texas Instruments DRV8833PWPR	Brushed DC	Half Bridge (4)	16-HTSSOP	1.5 A	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-PowerTSSOP	Surface Mount	NMOS	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C			0.173 in 4.4 mm Width

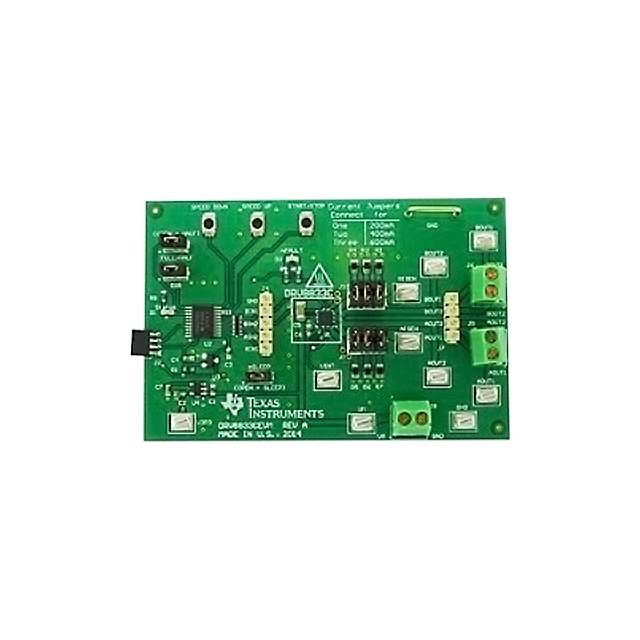

Texas Instruments DRV8833CEVM																					On-Board LEDs	Power Management	Motors (Stepper)	DRV8833C	16-Bit MCU	Board(s)
Texas Instruments DRV8833PWR	Brushed DC	Half Bridge (4)	16-TSSOP	1.5 A	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-TSSOP	Surface Mount	NMOS	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C	0.173 in	4.4 mm
Texas Instruments DRV8833PWP	Brushed DC	Half Bridge (4)	16-HTSSOP	1.5 A	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-PowerTSSOP	Surface Mount	NMOS	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C			0.173 in 4.4 mm Width
Texas Instruments DRV8833CPWPR	Brushed DC	Half Bridge (4)	16-HTSSOP	700 mA	Driver - Fully Integrated Control and Power Stage	2.7 V	10.8 V	DC Motors General Purpose Solenoids	16-PowerTSSOP	Surface Mount	Power MOSFET	PWM	Bipolar	2.7 V	10.8 V	150 °C	-40 °C			0.173 in 4.4 mm Width

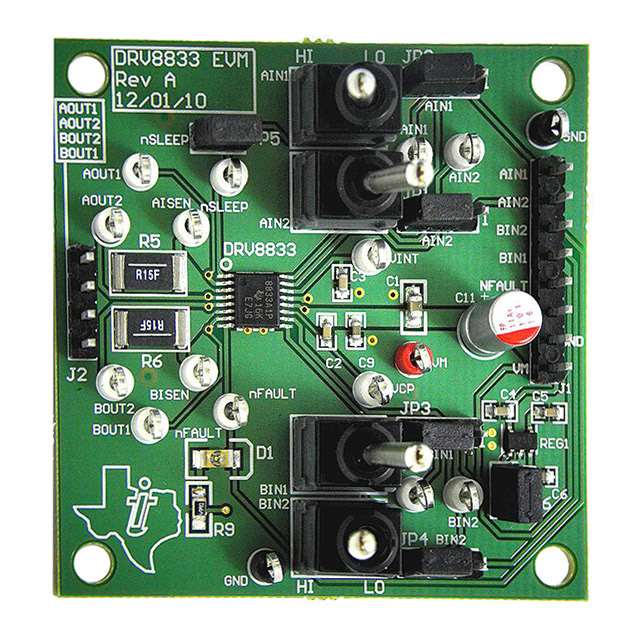

Texas Instruments DRV8833EVM																					I2C Interface(s)	Power Management		DRV8833		Board(s)

Catalog

10.8-V, 2-A dual H-bridge motor driver with current regulation

Key Features

• Dual H-Bridge Motor Driver With Current Control1 or 2 DC Motors or 1 Stepper MotorLow On-Resistance: HS + LS = 1735 mΩ(Typical, 25°C)Output Current Capability (at VM= 5 V, 25°C)PWP (HTSSOP) Package0.7-A RMS, 1-A Peak per H-Bridge1.4-A RMS in Parallel ModeRTE (QFN) Package0.6-A RMS, 1-A Peak per H-Bridge1.2-A RMS in Parallel ModeWide Power Supply Voltage Range2.7 to 10.8 VIntegrated Current RegulationEasy Pulse-Width-Modulation (PWM) Interface1.6-µA Low-Current Sleep Mode (at 5 V)Small Package and Footprint16 HTSSOP (PowerPAD™) 5.00 × 6.40 mm16 QFN (PowerPAD) 3.00 × 3.00 mmProtection FeaturesVMUndervoltage Lockout (UVLO)Overcurrent Protection (OCP)Thermal Shutdown (TSD)Fault Indication Pin (nFAULT)Dual H-Bridge Motor Driver With Current Control1 or 2 DC Motors or 1 Stepper MotorLow On-Resistance: HS + LS = 1735 mΩ(Typical, 25°C)Output Current Capability (at VM= 5 V, 25°C)PWP (HTSSOP) Package0.7-A RMS, 1-A Peak per H-Bridge1.4-A RMS in Parallel ModeRTE (QFN) Package0.6-A RMS, 1-A Peak per H-Bridge1.2-A RMS in Parallel ModeWide Power Supply Voltage Range2.7 to 10.8 VIntegrated Current RegulationEasy Pulse-Width-Modulation (PWM) Interface1.6-µA Low-Current Sleep Mode (at 5 V)Small Package and Footprint16 HTSSOP (PowerPAD™) 5.00 × 6.40 mm16 QFN (PowerPAD) 3.00 × 3.00 mmProtection FeaturesVMUndervoltage Lockout (UVLO)Overcurrent Protection (OCP)Thermal Shutdown (TSD)Fault Indication Pin (nFAULT)

Description

The DRV8833C provides a dual-bridge motor driver solution for toys, printers, and other mechatronic applications. The device has two H-bridges and can drive two DC brushed motors, a bipolar stepper motor, solenoids, or other inductive loads. Each H-bridge output consists of a pair of N-channel and P-channel MOSFETs, with circuitry that regulates the winding current. With proper PCB design, each H-bridge of the DRV8833C can drive up to 700-mA RMS (or DC) continuously, at 25°C with a VMsupply of 5 V. The device can support peak currents of up to 1 A per bridge. Current capability is reduced slightly at lower VMvoltages. Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, UVLO, and overtemperature. A low-power sleep mode is also provided. The DRV8833C provides a dual-bridge motor driver solution for toys, printers, and other mechatronic applications. The device has two H-bridges and can drive two DC brushed motors, a bipolar stepper motor, solenoids, or other inductive loads. Each H-bridge output consists of a pair of N-channel and P-channel MOSFETs, with circuitry that regulates the winding current. With proper PCB design, each H-bridge of the DRV8833C can drive up to 700-mA RMS (or DC) continuously, at 25°C with a VMsupply of 5 V. The device can support peak currents of up to 1 A per bridge. Current capability is reduced slightly at lower VMvoltages. Internal shutdown functions with a fault output pin are provided for overcurrent protection, short-circuit protection, UVLO, and overtemperature. A low-power sleep mode is also provided.
