S13B-XH Series
Manufacturer: JST Sales America Inc.
Beta
⌘K

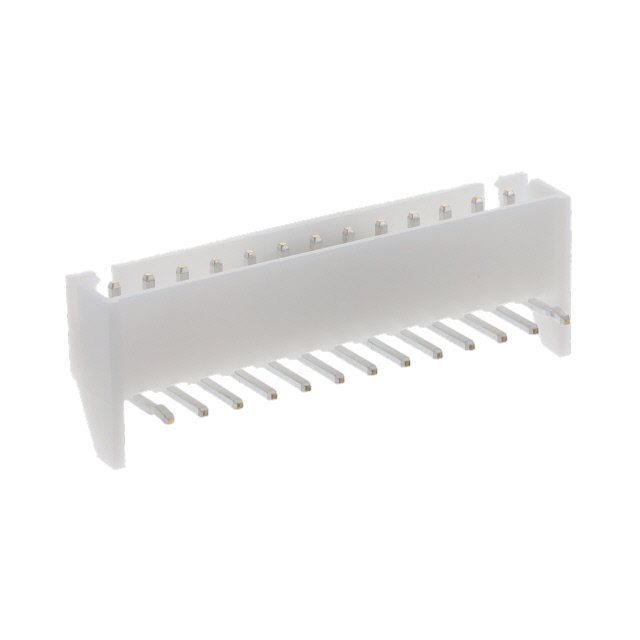

CONN HEADER R/A 13POS 2.5MM
| Part | Style | Connector Type | Contact Material | Number of Positions | Current Rating (Amps) | Number of Rows | Insulation Material | Operating Temperature [Max] | Operating Temperature [Min] | Shrouding | Pitch - Mating | Pitch - Mating | Fastening Type | Material Flammability Rating | Termination | Contact Type | Insulation Color | Voltage Rating | Contact Finish - Post | Number of Positions Loaded | Insulation Height [z] | Insulation Height [z] | Contact Shape | Mounting Type | Contact Length - Post [x] | Contact Length - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 JST Sales America Inc. | Board to Cable/Wire | Header | Brass | 13 | 3 A | 1 | Nylon 6/6 Polyamide (PA66) | 85 °C | -25 °C | Shrouded - 4 Wall | 2.5 mm | 0.098 in | Detent Lock | UL94 V-0 | Press-Fit Solder | Male Pin | Natural | 250 V | Tin | All | 6.1 mm | 0.24 in | Square | Right Angle Through Hole | 0.134 " | 3.4 mm |
