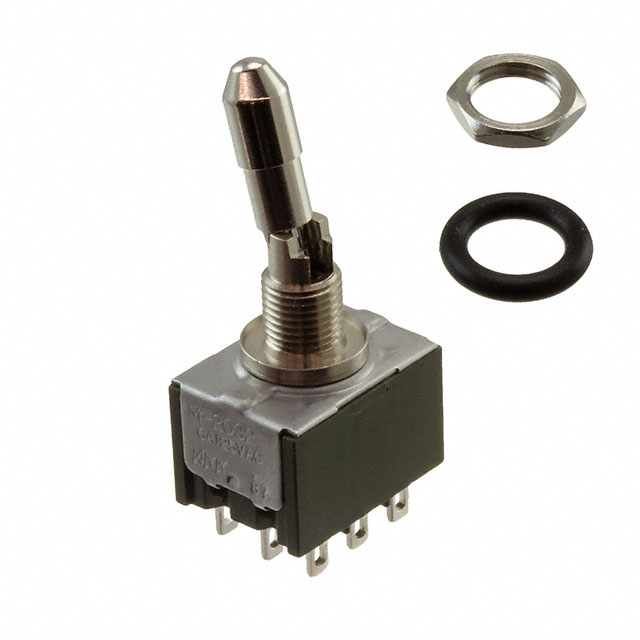

M2032LL Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 3PDT 6A 125V
| Part | Electrical Life | Actuator Material | Termination Style | Voltage Rating - DC | Actuator Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage Rating - AC | Features | Bushing Thread | Current Rating (Amps) | Actuator Length [x] | Mounting Type | Switch Function | Circuit | Illumination | Panel Cutout Dimensions [diameter] | Ingress Protection |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 25000 Steps | Brass Chrome Plated | PC Pin | 30 V | Locking Lever | 85 °C | -30 ░C | 125 V | Epoxy Sealed Terminals | Unthreaded | 4 A 6 A | 16.5 mm | Right Angle Through Hole | On-On | 3PDT | Non-Illuminated | ||
NKK Switches | 25000 Steps | Brass Chrome Plated | Solder Lug | 30 V | Locking Lever | 85 °C | -30 ░C | 125 V | Red Cap | 1/4-40 | 4 A 6 A | 16.5 mm | Panel Mount | On-On | 3PDT | Non-Illuminated | 6.5 mm | |
 NKK Switches | 50000 Cycles | Brass Chrome Plated | PC Pin | 28 V | Locking Lever | 85 °C | -30 ░C | 28 V | Epoxy Sealed Terminals | 1/4-40 | 0.4 VA | 16.5 mm | Panel Mount | On-On | 3PDT | Non-Illuminated | 6.5 mm | |
 NKK Switches | 25000 Steps | Brass Chrome Plated | Solder Lug | 30 V | Locking Lever | 85 °C | -30 ░C | 125 V | Epoxy Sealed Terminals | 1/4-40 | 4 A 6 A | 16.5 mm | Panel Mount | On-On | 3PDT | Non-Illuminated | 6.5 mm | IP67 - Dust Tight Waterproof |
