BD9E102 Series

Catalog

SWITCHING REGULATOR, CURRENT-MODE, 1A, 656KHZ SWITCHING FREQ-MAX, PDSO8, 4.90 X 6 MM, 1.65 MM HEIGHT, ROHS COMPLIANT, SOP-8

Part	Voltage - Output (Max) [Max]	Voltage - Input (Max) [Max]	Output Type	Operating Temperature [Max]	Operating Temperature [Min]	Number of Outputs	Voltage - Output (Min/Fixed)	Supplier Device Package	Function	Mounting Type	Topology	Package / Case	Package / Case [y]	Package / Case [x]	Voltage - Input (Min) [Min]	Frequency - Switching	Output Configuration	Current - Output	Utilized IC / Part	Outputs and Type	Outputs and Type	Main Purpose	Voltage - Input [Max]	Voltage - Input [Min]	Board Type	Supplied Contents	Regulator Topology	Voltage - Output
Rohm Semiconductor BD9E102FJ-GE2	18.2 V	26 V	Adjustable	85 °C	-40 °C	1	1 V	8-SOP-J	Step-Down	Surface Mount	Buck	8-SOIC	3.9 mm	0.154 in	7 V	570 kHz	Positive	1 A
Rohm Semiconductor BD9E102FJ-E2	18.2 V	26 V	Adjustable	85 °C	-40 °C	1	1 V	8-SOP-J	Step-Down	Surface Mount	Buck	8-SOIC	3.9 mm	0.154 in	7 V	570 kHz	Positive	1 A

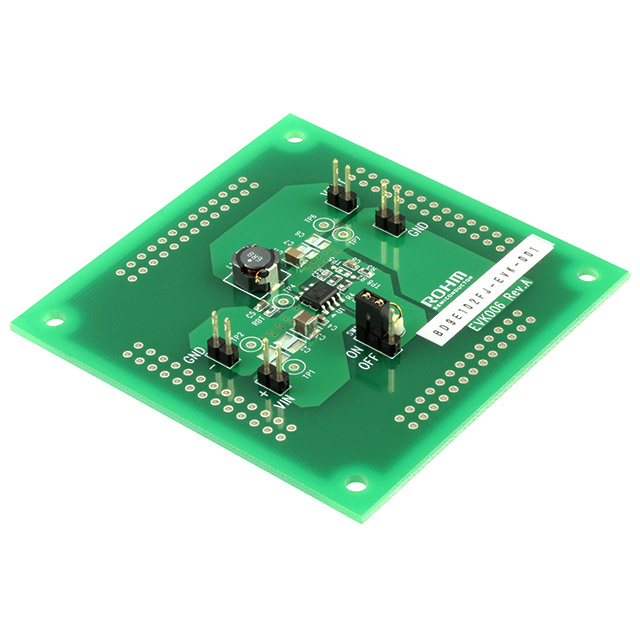

Rohm Semiconductor BD9E102FJ-EVK-001																570 kHz		1 A	BD9E102	Non-Isolated	1	DC/DC Step Down	26 V	7.2 V	Fully Populated	Board(s)	Buck	5 V
