747905 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

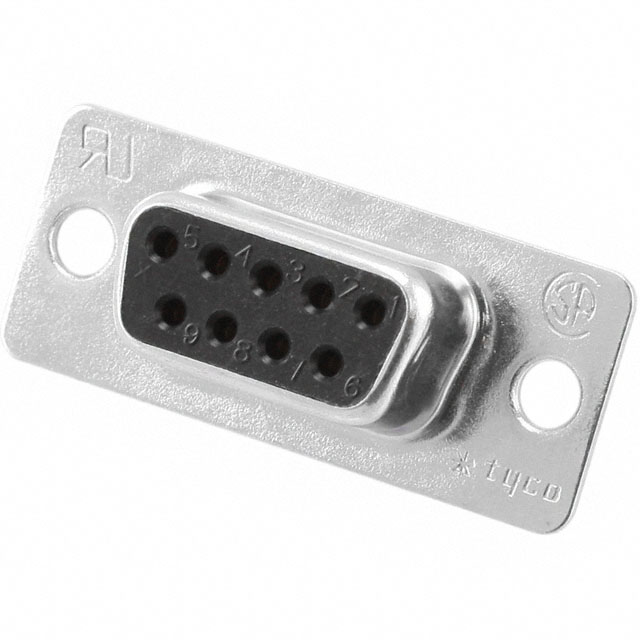

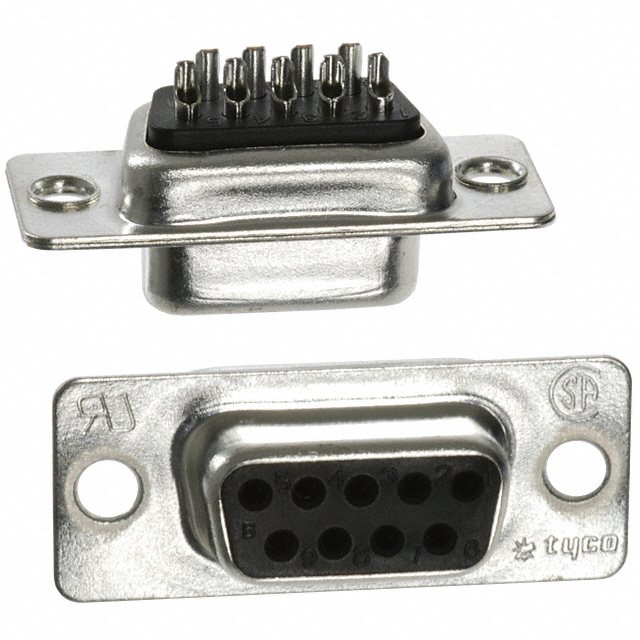

CONN D-SUB RCPT 9POS SOLDER CUP
| Part | Color | Operating Temperature [Min] | Operating Temperature [Max] | Voltage Rating | Dielectric Material | Contact Material | Material Flammability Rating | Mounting Type | Contact Finish | Connector Type | Contact Finish Thickness | Contact Finish Thickness | Current Rating (Amps) | Number of Positions | Flange Feature | Number of Rows [custom] | Contact Type | Shell Size, Connector Layout [custom] | Shell Size, Connector Layout [custom] | Connector Style | Shell Material, Finish [custom] | Shell Material, Finish [custom] | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Brass | UL94 V-0 | Free Hanging (In-Line) | Gold | Receptacle Female Sockets | 30 Áin | 0.76 Ám | 3 A | 9 | Housing/Shell (Unthreaded) | 2 | Signal | 1 | DE E | D-Sub | |||
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Brass | UL94 V-0 | Free Hanging (In-Line) | Gold | Receptacle Female Sockets | 3 A | 9 | Housing/Shell (Unthreaded) | 2 | Signal | 1 | DE E | D-Sub | Blue Zinc Plated | Steel | Flash | ||
 TE Connectivity AMP Connectors | Black | -55 C | 105 ░C | 250 V | Polybutylene Terephthalate (PBT) Glass Filled | Brass | UL94 V-0 | Free Hanging (In-Line) | Gold | Receptacle Female Sockets | 3 A | 9 | Cable Side (4-40) | 2 | Signal | 1 | DE E | D-Sub | Flash |
