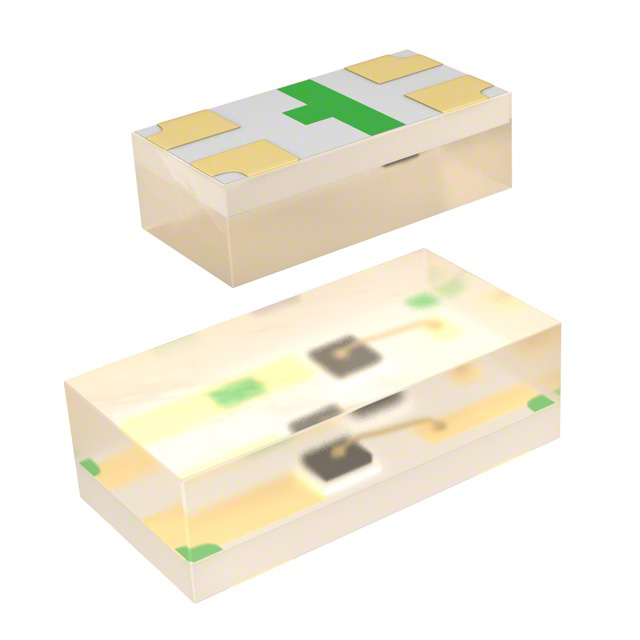

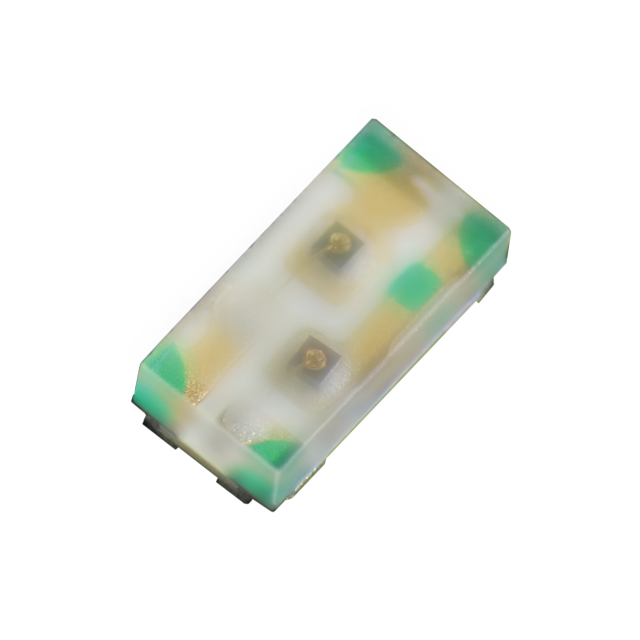

APHB1608 Series

Catalog

LED BLUE/RED CLEAR 4SMD

Part	Package / Case	Package / Case	Lens Color	Lens Transparency	Lens Size [y]	Lens Size [x]	Lens Style	Wavelength - Dominant	Wavelength - Peak	Mounting Type	Supplier Device Package	Viewing Angle	Color	Size / Dimension [x]	Size / Dimension [y]	Millicandela Rating [custom]	Millicandela Rating [custom]	Height (Max) [z]	Current - Test	Voltage - Forward (Vf) (Typ)	Configuration	Wavelength - Peak	Millicandela Rating	Wavelength - Dominant	Current - Test [custom]	Current - Test [custom]	Millicandela Rating [custom]	Current - Test [custom]	Wavelength - Peak [custom]	Current - Test [custom]	Current - Test
Kingbright APHB1608LQBDSURKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	465 nm 630 nm	460 nm 645 nm	Surface Mount	4-SMD	130 °	Blue Red	1.6 mm	0.8 mm	12 mcd	8 mcd	0.65 mm	2 mA 2 mA	1.8 V 2.7 V	Independent
Kingbright APHB1608LZGKSYKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	525 nm 590 nm		Surface Mount	4-SMD	130 °	Green Yellow	1.6 mm	0.8 mm			0.65 mm	2 mA 2 mA		Independent	515nm Green 590nm Yellow	10 mcd 40 mcd
Kingbright APHB1608LVBDZGKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	470 nm 525 nm		Surface Mount	4-SMD	130 °	Blue Green	1.6 mm	0.8 mm			0.65 mm	2 mA	2.7 V 2.7 V	Independent	465nm Blue 515nm Green	15 mcd 40 mcd
Kingbright APHB1608QBDCGKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top		460 nm 574 nm	Surface Mount	4-SMD	130 °	Blue Green	1.6 mm	0.8 mm	70 mcd		0.65 mm		2.1 V 3.3 V	Independent			465nm Blue 570nm Green	20 mA	20 mA	50 mcd
Kingbright APHB1608ZGKSURKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top			Surface Mount	4-SMD	130 °	Green Red	1.6 mm	0.8 mm		250 mcd	0.65 mm		1.95 V 3.3 V	Independent			525nm Green 630nm Red		20 mA	350 mcd	20 mA	515 nm 645 nm
Kingbright APHB1608QBDSYKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	465 nm 590 nm	460 nm 590 nm	Surface Mount	4-SMD	130 °	Blue Yellow	1.6 mm	0.8 mm			0.65 mm		2 V 3.3 V	Independent		70 mcd 150 mcd		20 mA					20 mA
Kingbright APHB1608CGKSEKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	570 nm 601 nm	574 nm 610 nm	Surface Mount	4-SMD	130 °	Green Orange	1.6 mm	0.8 mm			0.65 mm		2.1 V 2.1 V	Independent		50 mcd 250 mcd								20mA Green 20mA Orange
Kingbright APHB1608LCGKSYKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top	570 nm 590 nm		Surface Mount	4-SMD	130 °	Green Yellow	1.6 mm	0.8 mm			0.65 mm	2 mA 2 mA	1.9 V 1.9 V	Independent	574nm Green 590nm Yellow	3 mcd 10 mcd
Kingbright APHB1608ZGSURKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top			Surface Mount	4-SMD	130 °	Green Red	1.6 mm	0.8 mm			0.65 mm		1.95 V 3.3 V	Independent		90 mcd 350 mcd	525nm Green 630nm Red		20 mA		20 mA	515 nm 645 nm
Kingbright APHB1608LQBDCGKC	1608 Metric	0603	Colorless	Clear	0.8 mm	1.6 mm	Rectangle with Flat Top		460 nm 574 nm	Surface Mount	4-SMD	130 °	Blue Green	1.6 mm	0.8 mm	12 mcd		0.65 mm	2 mA	1.9 V 2.7 V	Independent			465nm Blue 570nm Green			3 mcd
