CC453232 Series

Catalog

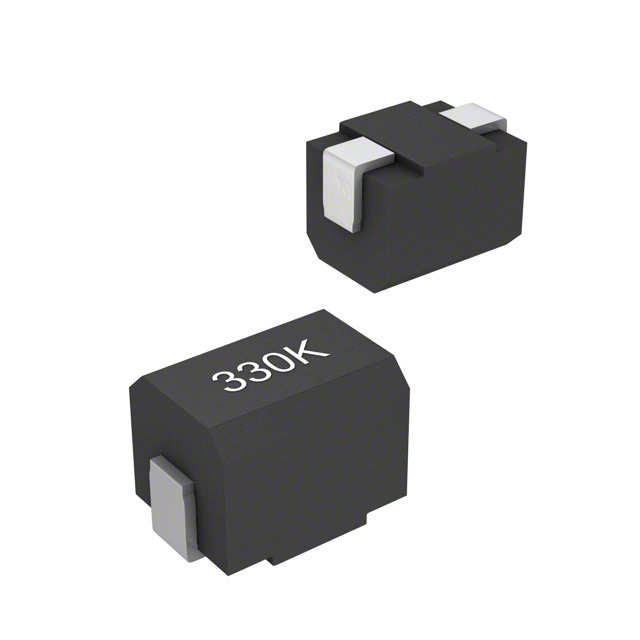

SURFACE MOUNT POWER INDUCTOR, CC453232 SERIES, 22 H, 10%, WIREWOUND, 0.9 OHM ROHS COMPLIANT: YES

Part	Q @ Freq [custom]	Q @ Freq [custom]	Shielding	Type	Package / Case	Height - Seated (Max) [Max]	Height - Seated (Max)	Inductance	Mounting Type	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Frequency - Self Resonant	Operating Temperature [Max]	Operating Temperature [Min]	Material - Core	Tolerance	Inductance Frequency - Test	Current Rating (Amps)	DC Resistance (DCR) [Max]	Q @ Freq [custom]	Q @ Freq	DC Resistance (DCR)
Bourns Inc. CC453232-220KL	2.52 MHz	10	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	22 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	18 MHz	125 °C	-40 C	Ferrite	10 %	2.52 MHz	0.37 A
Bourns Inc. CC453232-101KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	100 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	8 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	0.18 A	4 Ohm	796 kHz
Bourns Inc. CC453232-271KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	270 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	5 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	100 mA	11 Ohm	796 kHz
Bourns Inc. CC453232-181KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	180 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	6.5 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	120 mA		796 kHz
Bourns Inc. CC453232-221KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	220 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	5.5 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	120 mA	9 Ohm	796 kHz
Bourns Inc. CC453232-1R5KL			Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	1.5 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	130 MHz	125 °C	-40 C	Ferrite	10 %	7.96 MHz	950 mA			7.96 MHz 10	150 mOhm
Bourns Inc. CC453232-331KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	330 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	4 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	0.09 A	13 Ohm	796 kHz
Bourns Inc. CC453232-471KL		20	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	470 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	3 MHz	125 °C	-40 C	Ferrite	10 %	0.796 MHz	75 mA	16 Ohm	796 kHz
Bourns Inc. CC453232-120KL	2.52 MHz	10	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	12 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	21 MHz	125 °C	-40 C	Ferrite	10 %	2.52 MHz	0.5 A
Bourns Inc. CC453232-390KL	2.52 MHz	10	Unshielded	Drum Core Wirewound	1812 (4532 Metric)	0.134 in	3.4 mm	39 µH	Surface Mount	0.177 in	4.5 mm	3.2 mm	0.126 in	12 MHz	125 °C	-40 C	Ferrite	10 %	2.52 MHz	0.28 A	1.6 Ohm
