ACPL-227 Series
Manufacturer: Broadcom Limited
Beta
⌘K

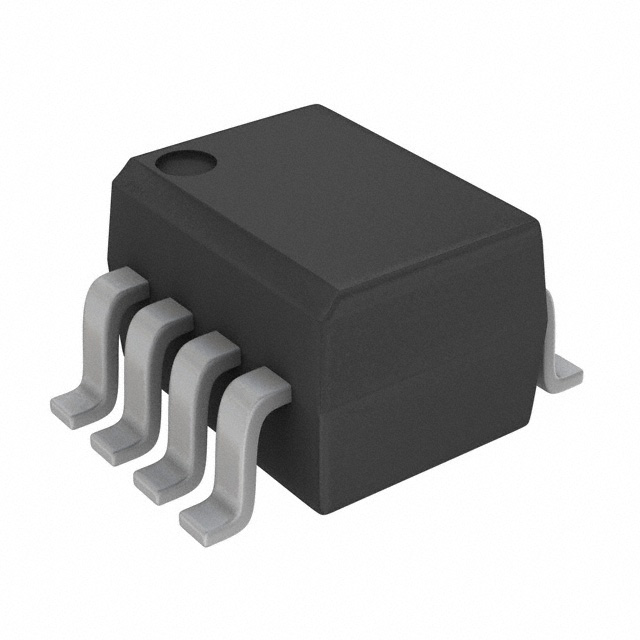

OPTOISOLATOR 3KV 2CH TRANS 8SOIC
| Part | Package / Case | Output Type | Current Transfer Ratio (Min) | Voltage - Isolation | Supplier Device Package | Current Transfer Ratio (Max) [Max] | Current - Output / Channel [custom] | Turn On / Turn Off Time (Typ) | Input Type | Vce Saturation (Max) [Max] | Rise / Fall Time (Typ) | Mounting Type | Number of Channels | Current - DC Forward (If) (Max) [Max] | Operating Temperature [Min] | Operating Temperature [Max] | Current Transfer Ratio (Max) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 8-SOIC (0.173" 4.40mm Width) | Transistor | 130 % | 3000 VAC | 8-SO | 260 % | 50 mA | 3 µs | DC | 400 mV | 2 µs 3 µs | Surface Mount | 2 | 50 mA | -55 C | 110 °C | |
Broadcom Limited | 8-SOIC (0.173" 4.40mm Width) | Transistor | 50 % | 3000 VAC | 8-SO | 600 % | 50 mA | 3 µs | DC | 400 mV | 2 µs 3 µs | Surface Mount | 2 | 50 mA | -55 C | 110 °C | |
Broadcom Limited | 8-SOIC (0.173" 4.40mm Width) | Transistor | 200 % | 3000 VAC | 8-SO | 50 mA | 3 µs | DC | 400 mV | 2 µs 3 µs | Surface Mount | 2 | 50 mA | -55 C | 110 °C | 400 % |
