T350K Series

Manufacturer: KEMET

Catalog

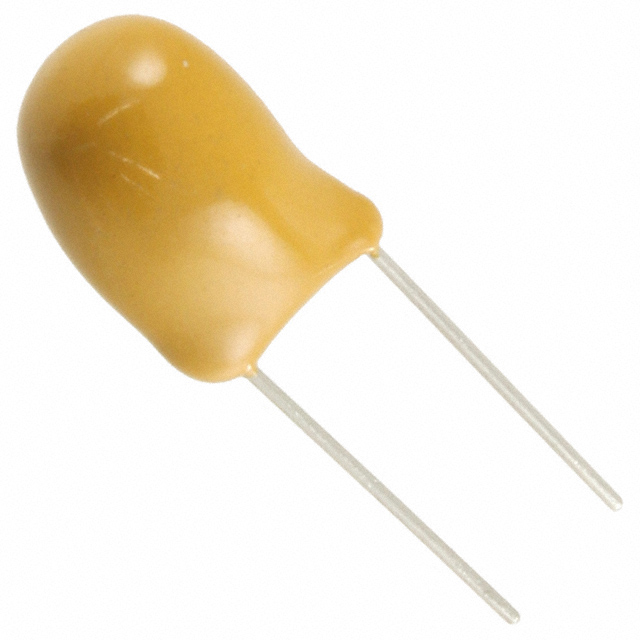

CAP TANT 47UF 10% 25V RADIAL

Part	ESR (Equivalent Series Resistance)	Tolerance	Size / Dimension [diameter]	Size / Dimension [diameter]	Lead Spacing	Lead Spacing	Manufacturer Size Code	Height - Seated (Max)	Height - Seated (Max) [Max]	Mounting Type	Package / Case	Operating Temperature [Min]	Operating Temperature [Max]	Features	Capacitance	Voltage - Rated	Type	Height - Seated (Max) [Max]
KEMET T350K476K025AT	1 Ohms	10 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K	13.5 mm	0.532 "	Through Hole	Radial	-55 C	125 °C	General Purpose	47 µF	25 VDC	Conformal Coated
KEMET T350K106M050AS	1.6 Ohm	20 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K		0.531 in	Through Hole	Radial	-55 C	125 °C	General Purpose	10 µF	50 VDC	Conformal Coated	13.5 mm
KEMET T350K476M025AT		20 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K	13.5 mm	0.532 "	Through Hole	Radial	-55 C	125 °C	General Purpose	47 µF	25 VDC	Conformal Coated
KEMET T350K157M010AT	800 mOhm	20 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K		0.531 in	Through Hole	Radial	-55 C	125 °C	General Purpose	150 µF	10 V	Conformal Coated	13.5 mm
KEMET T350K226K035AS	1.3 Ohm	10 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K	13.5 mm	0.532 "	Through Hole	Radial	-55 C	125 °C	General Purpose	22 µF	35 V	Conformal Coated
KEMET T350K686K016AT	1 Ohms	10 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K	13.5 mm	0.532 "	Through Hole	Radial	-55 C	125 °C	General Purpose	68 µF	16 V	Conformal Coated
KEMET T350K106K050AS	1.6 Ohm	10 %	0.35 in	8.9 mm	0.2 in	5.08 mm	K	13.5 mm	0.532 "	Through Hole	Radial	-55 C	125 °C	General Purpose	10 µF	50 VDC	Conformal Coated
