PS9587L2 Series

High CMR, 10 Mbps Open Collector Output Type 8-pin DIP High-speed Photocoupler for Creepage Distance of 8 mm

Manufacturer: Renesas Electronics Corporation

Catalog

High CMR, 10 Mbps Open Collector Output Type 8-pin DIP High-speed Photocoupler for Creepage Distance of 8 mm

Part	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Data Rate	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Current - DC Forward (If) (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Forward (Vf) (Typ)	Output Type	Input Type	Mounting Type	Voltage - Supply [Min]	Voltage - Supply [Max]	Supplier Device Package	Inputs - Side 1/Side 2 [custom]	Common Mode Transient Immunity (Min) [Min]	Current - Output / Channel	Number of Channels	Package / Case	Package / Case	Package / Case
Renesas Electronics Corporation PS9587L3-AX	75 ns	75 ns	10 Mbps	20 ns	10 ns	30 mA	85 °C	-40 °C	1.65 V	Open Collector	DC	Surface Mount	4.5 V	5.5 V	8-DIP Gull Wing	1	15 kV/µs	25 mA	1
Renesas Electronics Corporation PS9587L3-E3-AX	75 ns	75 ns	10 Mbps	20 ns	10 ns	30 mA	85 °C	-40 °C	1.65 V	Open Collector	DC	Surface Mount	4.5 V	5.5 V	8-DIP Gull Wing	1	15 kV/µs	25 mA	1
Renesas Electronics Corporation PS9587L1-V-AX	75 ns	75 ns	10 Mbps	20 ns	10 ns	30 mA	85 °C	-40 °C	1.65 V	Open Collector	DC	Through Hole	4.5 V	5.5 V	8-DIP	1	15 kV/µs	25 mA	1	10.16 mm	8-DIP	10.16 mm

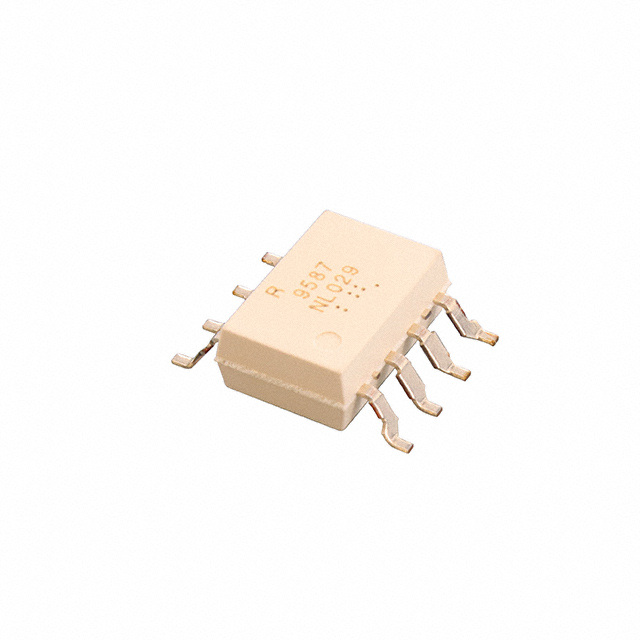

Renesas Electronics Corporation PS9587L2-V-AX	75 ns	75 ns	10 Mbps	20 ns	10 ns	30 mA	85 °C	-40 °C	1.65 V	Open Collector	DC	Surface Mount	4.5 V	5.5 V	8-SMD	1	15 kV/µs	25 mA	1

Catalog

High CMR, 10 Mbps Open Collector Output Type 8-pin DIP High-speed Photocoupler for Creepage Distance of 8 mm

Description

The PS9587, PS9587L1, PS9587L2 and PS9587L3 are optically coupled isolators containing a GaAlAs LED on the input side and a photo diode and a signal processing circuit on the output side on one chip. The PS9587L1 and PS9587L2 are designed specifically for long creepage-distance as well as high common mode transient immunity (CMR) and High-Speed digital output type. Consequently, they are suitable for High-Speed logic interface that needs long creepage-distance (8 mm) on mounting. The PS9587L1 is lead bending type for long creepage distance. The PS9587L2 is lead bending type for long creepage distance (Gull-wing) for surface mount. The PS9587L3 is lead bending type (Gull-wing) for surface mounting.
