TUHW-88R Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

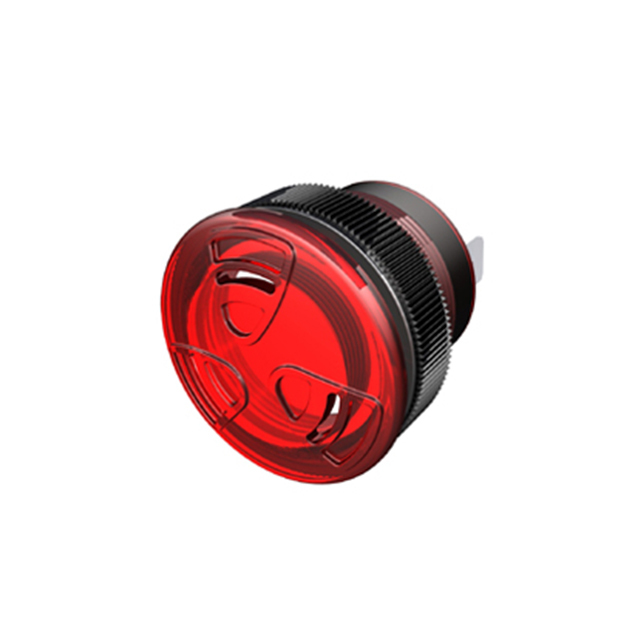

BUZZER 33MM PNL MNT
| Part | Frequency | Approval Agency | Ingress Protection | Size / Dimension [diameter] | Size / Dimension [diameter] | Current - Supply [Max] | Current - Supply [Min] | Mounting Type | Voltage Range [Max] | Voltage Range [Min] | Input Type | Driver Circuitry | Port Location | Height - Seated (Max) [Max] [z] | Height - Seated (Max) [Max] [z] | Termination | Termination | Termination | Operating Mode | Sound Pressure Level (SPL) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | 3 kHz | UL UR | IP68 - Dust Tight Waterproof | 1.299 in | 33 mm | 125 mA | 65 mA | Panel Mount | 30 V | 9 V | DC | Indicator Internally Driven | Top | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | Slow Warble | 103 dB |
 Floyd Bell Inc | 3 kHz | UL UR | IP68 - Dust Tight Waterproof | 1.3 in | 33.02 mm | 125 mA | 65 mA | Panel Mount | 30 V | 9 V | DC | Indicator Internally Driven | Top | 29.97 mm | 1.18 in | Quick Connect Tab | 0.25 " | 6.35 mm | Warble Fast | 103 dB |
