5053C Series
Manufacturer: ALPHA WIRE
Beta
⌘K

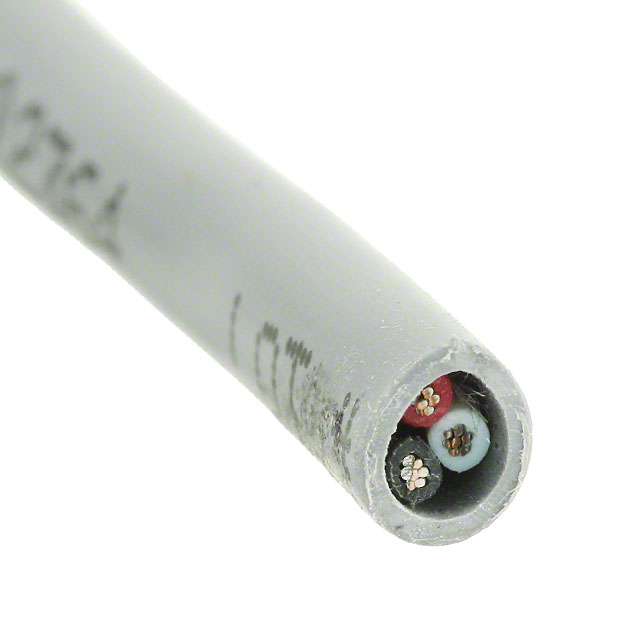

CBL 3COND 20AWG SLATE 1000=1000'
| Part | Conductor Insulation | Features | Operating Temperature [Min] | Operating Temperature [Max] | Ratings | Jacket Color | Cable Type | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Number of Conductors | Voltage | Conductor Strand [custom] | Conductor Strand [custom] | Wire Gauge | Usage | Conductor Material | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 0.219 " | 5.56 mm | 3 | 300 VDC | 28 AWG | 7 | 20 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | ||
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 0.219 " | 5.56 mm | 3 | 300 VDC | 28 AWG | 7 | 20 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | 304.8 m | 1000 ft |
ALPHA WIRE | Poly-Vinyl Chloride (PVC) | Biological Compatibility Rip Cord | -35 °C | 105 ░C | ISO 10993 UL Style 2464 | Slate | Multi-Conductor | 0.813 mm | 0.032 in | 0.219 " | 5.56 mm | 3 | 300 VDC | 28 AWG | 7 | 20 AWG | Communication Control | Copper Tinned | Poly-Vinyl Chloride (PVC) | 152.4 m | 500 ft |
