834-43 Series

Manufacturer: Mill-Max Manufacturing Corp.

Catalog

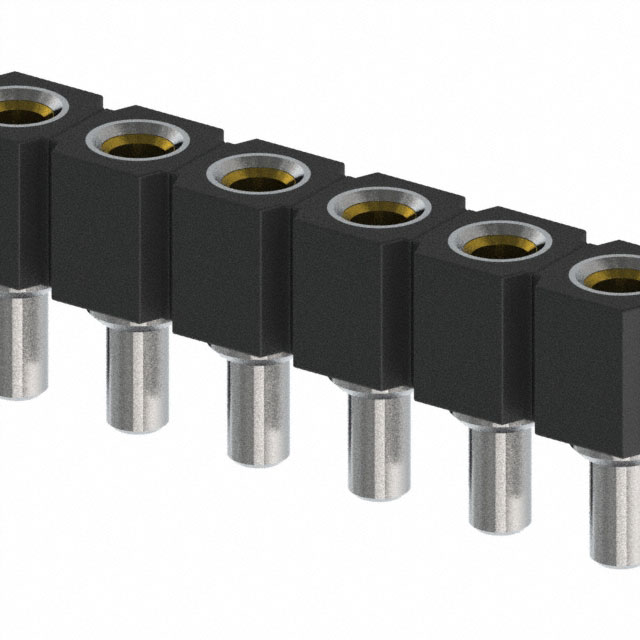

CONN RCPT 20POS 0.1 GOLD PCB

Part	Insulation Material	Contact Material	Contact Shape	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Insulation Height [z]	Insulation Height [z]	Number of Rows	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Termination	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Post	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Number of Positions	Fastening Type	Number of Positions Loaded	Connector Type	Insulation Color
Mill-Max Manufacturing Corp. 834-43-020-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	20	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-035-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	35	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-050-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	50	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-043-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	43	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-006-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	6	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-023-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	23	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-018-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	18	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-064-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	64	Push-Pull	All	Receptacle Pass Through	Black

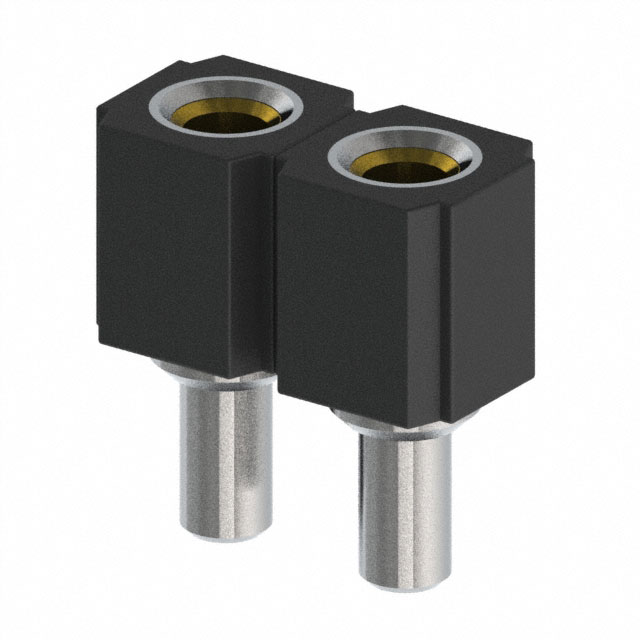

Mill-Max Manufacturing Corp. 834-43-002-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	2	Push-Pull	All	Receptacle Pass Through	Black
Mill-Max Manufacturing Corp. 834-43-028-10-001000	Polycyclohexylenedimethylene Terephthalate (PCT) Polyester	Beryllium Copper	Circular	200 µin	5.08 µm	0.13 in	3.3 mm	1	Through Hole	0.1 "	2.54 mm	Female Socket	Solder	2.03 mm	0.08 in	Gold	0.76 Ám	30 Áin	Tin	-55 C	125 °C	UL94 V-0	28	Push-Pull	All	Receptacle Pass Through	Black
