280522 Series

Catalog

CONN HEADER R/A 24POS 2.54MM

Part	Current Rating (Amps)	Voltage Rating	Insulation Material	Contact Shape	Termination	Contact Length - Mating [custom]	Contact Length - Mating [custom]	Contact Type	Fastening Type	Number of Positions Loaded	Insulation Color	Contact Material	Style	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Mounting Type	Shrouding	Number of Rows	Contact Length - Post	Contact Length - Post	Contact Finish - Mating	Pitch - Mating	Pitch - Mating	Contact Finish - Post	Connector Type	Number of Positions	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post

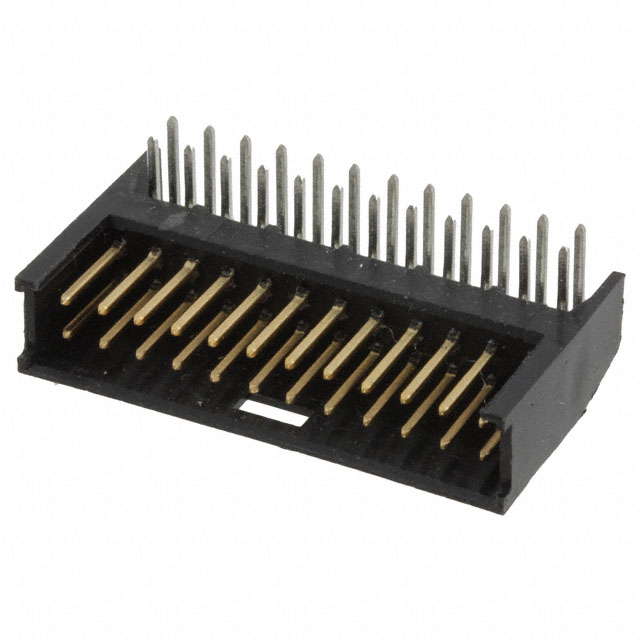

TE Connectivity Raychem Cable Protection 280522-2	3 A	40 V	Thermoplastic	Square	Solder	6.6 mm	0.26 in	Male Pin	Detent Lock	All	Black	Brass	Board to Board Cable	7 mm	0.276 in	98.4 Ąin	2.5 Ąm	2.54 mm	0.1 in	15 Ąin	0.38 Ąm	Through Hole Right Angle	Shrouded - 3 Wall	2	3.5 mm	0.138 in	Gold	0.1 in	2.54 mm	Tin	Header	24	-40 °C	80 C	UL94 V-0
TE Connectivity Raychem Cable Protection 280522-1	3 A	40 V	Thermoplastic	Square	Solder	6.6 mm	0.26 in	Male Pin	Detent Lock	All	Black	Brass	Board to Board Cable	7 mm	0.276 in	3 µm		2.54 mm	0.1 in	3.5 µm		Through Hole Right Angle	Shrouded - 3 Wall	2	3.5 mm	0.138 in		0.1 in	2.54 mm	Tin	Header	24	-40 °C	80 C	UL94 V-0	137.8 µin	118.1 µin
