WR9HE1000 Series

Catalog

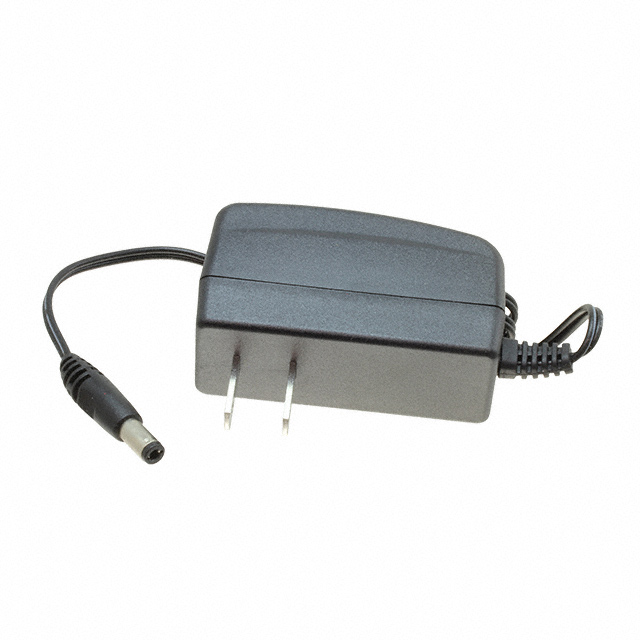

AC/DC WALL MOUNT ADAPTER 12V 12W

Part	Power (Watts)	Standard Number	Polarization	Approval Agency	Input Type	Current - Output (Max) [Max]	Cord Length	Cord Length	Efficiency	Output Connector [diameter]	Output Connector [z]	Output Connector	Voltage - Input [Max]	Voltage - Input [Min]	Input Connector	Region Utilized	No Load Power Consumption	Voltage - Output	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Form	Operating Temperature [Max]	Applications	Output Connector [x]

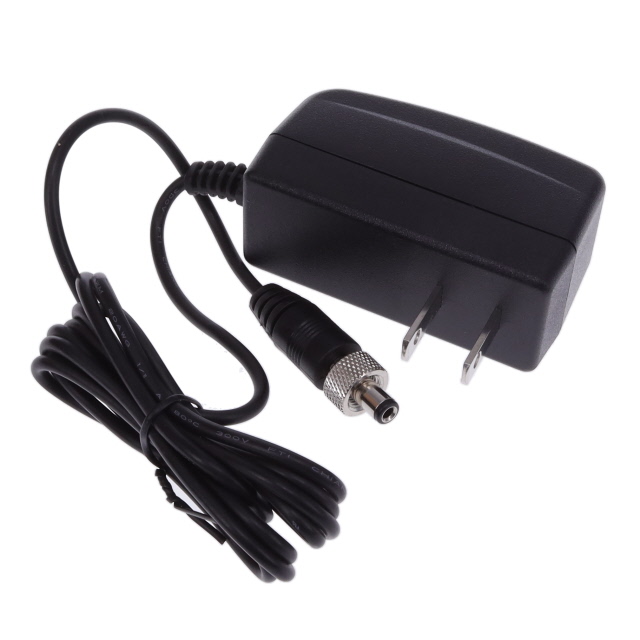

GlobTek, Inc. WR9HE1000LLP-F(R6B)	12 W	60950-1	Positive Center	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	Fixed Blade	1 A	1.5 m	59 in	CoC Tier 2 Level VI	2.5 mm 5.5 mm	13.8 mm	Barrel Plug	264 VAC	90 VAC	NEMA 1-15P	North America	75 mW	12 V	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	Wall Mount	50 °C	ITE (Commercial)

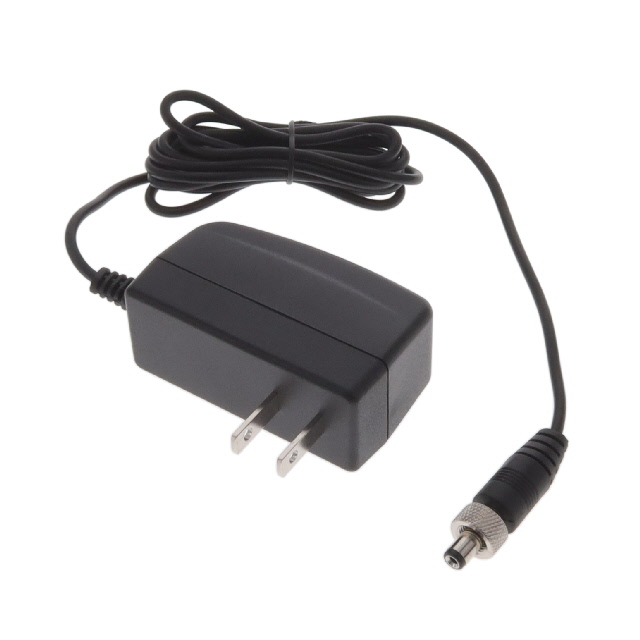

GlobTek, Inc. WR9HE1000CLP-F(R6B)	12 W	60950-1	Positive Center	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	Fixed Blade	1 A	1.5 m	59 in	CoC Tier 2 Level VI	2.1 mm 5.5 mm		Barrel Plug	264 VAC	90 VAC	NEMA 1-15P	North America	75 mW	12 V	1.13 "	2.72 in	69 mm	57.3 mm	28.8 mm	2.26 in	Wall Mount	50 °C	ITE (Commercial)	13.8 mm
GlobTek, Inc. WR9HE1000CCP-F(R6B)	12 W	60950-1	Positive Center	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	Fixed Blade	1 A	1.5 m	59 in	Level VI	2.1 mm 5.5 mm		Barrel Plug	264 VAC	90 VAC	NEMA 1-15P	North America	75 mW	12 V	1.13 "	2.72 in	69 mm	40.3 mm	28.8 mm	1.59 in	Wall Mount	50 °C	ITE (Commercial)	11 mm

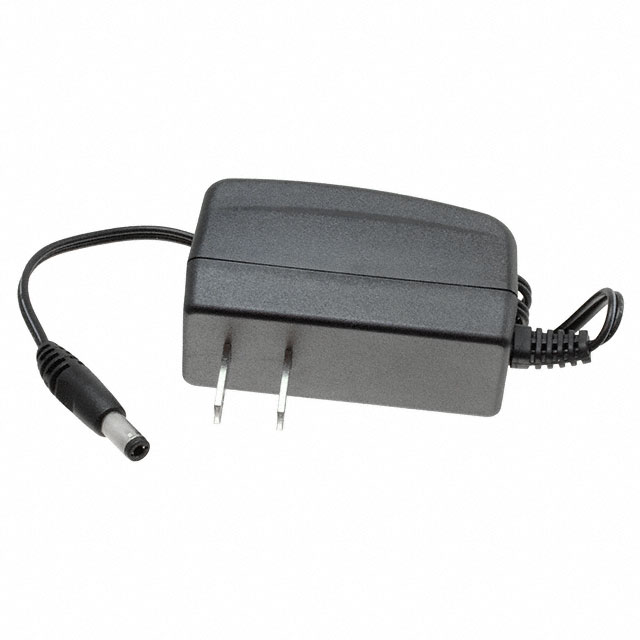

GlobTek, Inc. WR9HE1000LCP-F(R6B)	12 W	60950-1	Positive Center	CB cULus EAC FCC LPS PSE UkrSEPRO VCCI	Fixed Blade	1 A	1.5 m	59 in	Level VI	2.5 mm 5.5 mm		Barrel Plug	264 VAC	90 VAC	NEMA 1-15P	North America	75 mW	12 V	1.13 "	2.72 in	69 mm	40.3 mm	28.8 mm	1.59 in	Wall Mount	50 °C	ITE (Commercial)	11 mm
