CH-V09-201 Series
Manufacturer: Floyd Bell Inc
Beta
⌘K

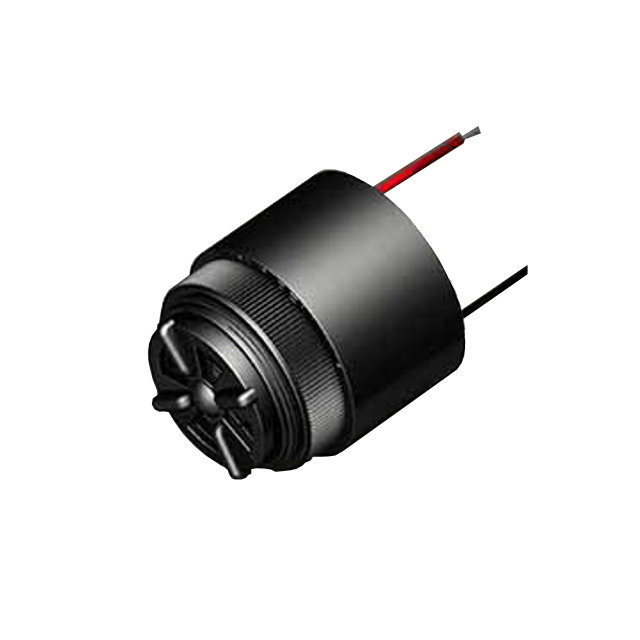

BUZZER PIEZO 120V 35.8MM PNL MNT
| Part | Operating Mode | Height - Seated (Max) [Max] [z] | Height - Seated (Max) | Size / Dimension [diameter] | Size / Dimension [diameter] | Technology | Driver Circuitry | Voltage - Rated | Port Location | Approval Agency | Ingress Protection | Frequency | Sound Pressure Level (SPL) | Current - Supply | Input Type | Termination | Termination | Termination | Mounting Type | Size / Dimension [diameter] | Height - Seated (Max) [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Floyd Bell Inc | Chime | 1.48 in | 37.59 mm | 35.8 mm | 1.409 in | Piezo | Indicator Internally Driven | 120 VDC | Top | UL UR | IP68 - Dust Tight Waterproof | 2.9 kHz | 93 dB | 40 mA | AC | Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | ||
 Floyd Bell Inc | Chime | 1.48 in | 37.59 mm | 35.81 mm | Piezo | Indicator Internally Driven | 120 VDC | Top | UL UR | IP68 - Dust Tight Waterproof | 2.9 kHz | 93 dB | 40 mA | AC | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | 1.41 in | ||
 Floyd Bell Inc | Chime | 38.86 mm | 35.8 mm | 1.409 in | Piezo | 120 VDC | Top | 2.9 kHz | 93 dB | 40 mA | AC | Wire Leads | Panel Mount | 1.53 in | |||||||
 Floyd Bell Inc | Chime | 1.48 in | 37.59 mm | 35.8 mm | 1.409 in | Piezo | Indicator Internally Driven | 120 VDC | Top | UL UR | IP68 - Dust Tight Waterproof | 2.9 kHz | 93 dB | 40 mA | AC | Screw Terminal Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | ||
Floyd Bell Inc | Chime | 38.86 mm | 35.81 mm | Piezo | 120 VDC | Top | 2.9 kHz | 93 dB | 40 mA | AC | Wire Leads | Panel Mount | 1.41 in | 1.53 in | |||||||
 Floyd Bell Inc | Chime | 1.48 in | 37.59 mm | 35.81 mm | Piezo | Indicator Internally Driven | 120 VDC | Top | UL UR | IP68 - Dust Tight Waterproof | 2.9 kHz | 93 dB | 40 mA | AC | Quick Connect Tab | 0.25 " | 6.35 mm | Panel Mount | 1.41 in |
