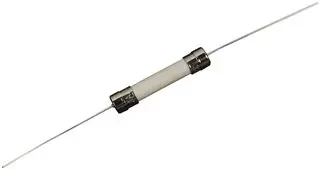

FUSE 250V SB PT 3AB Pb-FREE 1A
Description
AI
The 3AB Slo-Blo® Fuse with ceramic body construction permits higher interrupting ratings and voltage ratings. Ideal for applications where high current loads are expected.
Beta
⌘K
FUSE 250V SB PT 3AB Pb-FREE 1A
FUSE 250V SB PT 3AB Pb-FREE 1A
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Breaking Capacity @ Rated Voltage | Melting I²t | Mounting Type | Response Time | Size / Dimension [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [diameter] | Current Rating (Amps) | Approval Agency | Voltage Rating - DC | Fuse Type | Package / Case [y] | Package / Case | Package / Case [x] | Voltage Rating - AC | DC Cold Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 LITTELFUSE | -55 C | 125 °C | 10 kA 100 A | 16.3 | Through Hole | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 1 A | CE CSA PSE UL | 125 VDC | Cartridge Ceramic | 3AB 3AG | 0.25 " | 250 V | ||
LITTELFUSE | -55 C | 125 °C | 10 kA 100 A | 16.3 | Through Hole | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 1 A | CE CSA PSE UL | 125 VDC | Cartridge Ceramic | 3AB 3AG | 0.25 " | 250 V | ||
 LITTELFUSE | -55 C | 125 °C | 10 kA 100 A | 16.3 | Through Hole | Slow Blow | 1.288 " | 6.99 mm | 32.72 mm | 0.275 in | 1 A | CE CSA PSE UL | 125 VDC | Cartridge Ceramic | 3AB 3AG | 0.25 " | 250 V | 0.389 Ohms |
