AWHW 24 Series

Catalog

CONN HEADER VERT 24POS 2.54MM

Part	Contact Type	Pitch - Mating	Pitch - Mating	Termination	Number of Positions	Contact Finish - Post	Contact Length - Post	Contact Length - Post	Contact Length - Mating	Contact Length - Mating	Fastening Type	Contact Finish - Mating	Mounting Type	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Insulation Height	Insulation Height	Insulation Material	Material Flammability Rating	Style	Operating Temperature [Min]	Operating Temperature [Max]	Shrouding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Current Rating (Amps)	Number of Rows [custom]	Connector Type	Features	Number of Positions Loaded	Contact Shape	Insulation Color	Contact Material	Insulation Height [z]	Insulation Height [z]	Contact Finish Thickness - Mating

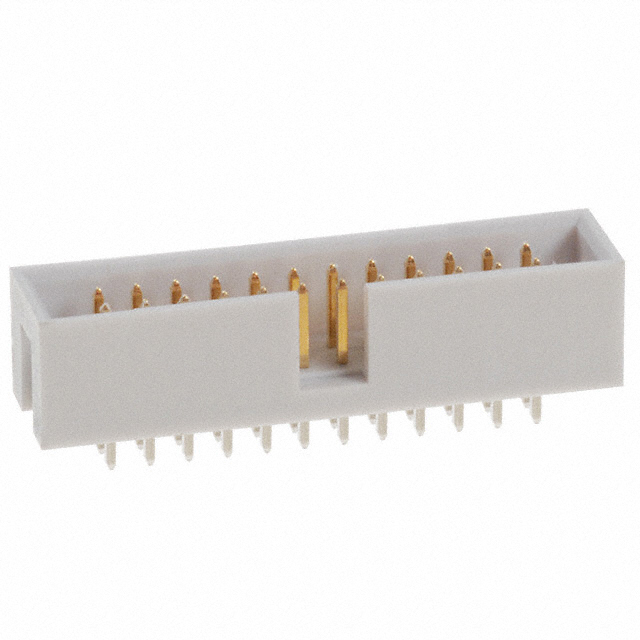

Assmann WSW Components AWHW24G-0102-T-R	Male Pin	0.1 "	2.54 mm	Solder	24	Tin	0.13 "	3.3 mm	0.224 in	5.7 mm	Push-Pull	Gold	Through Hole	0.1 in	2.54 mm	0.354 in	9 mm	Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Board to Cable/Wire	-40 C	105 ░C	Shrouded - 4 Wall	0.76 Ám	30 Áin	3 A	2	Header	Keying Slot	All	Square	Gray	Brass

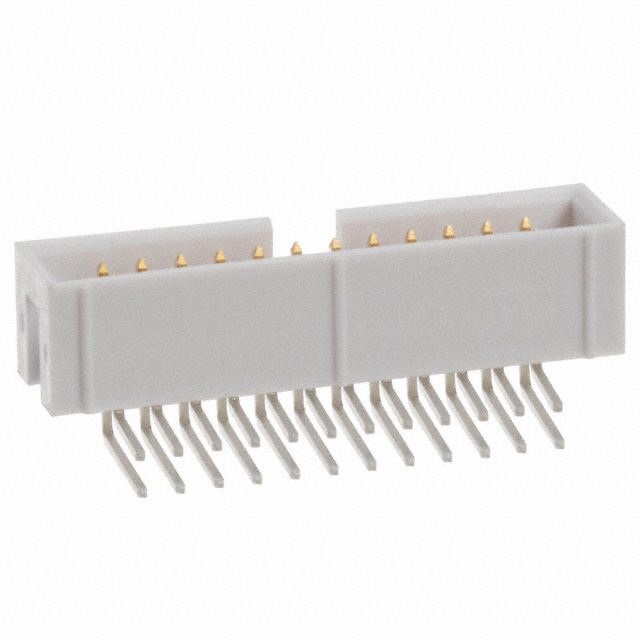

Assmann WSW Components AWHW 24A-0202-T	Male Pin	0.1 "	2.54 mm	Solder	24	Tin	0.124 in	3.15 mm	0.224 in	5.7 mm	Push-Pull	Gold	Right Angle Through Hole	0.1 in	2.54 mm			Polybutylene Terephthalate (PBT) Glass Filled	UL94 V-0	Board to Cable/Wire	-40 C	105 ░C	Shrouded - 4 Wall			3 A	2	Header	Keying Slot	All	Square	Gray	Brass	0.352 in	8.95 mm	Flash
