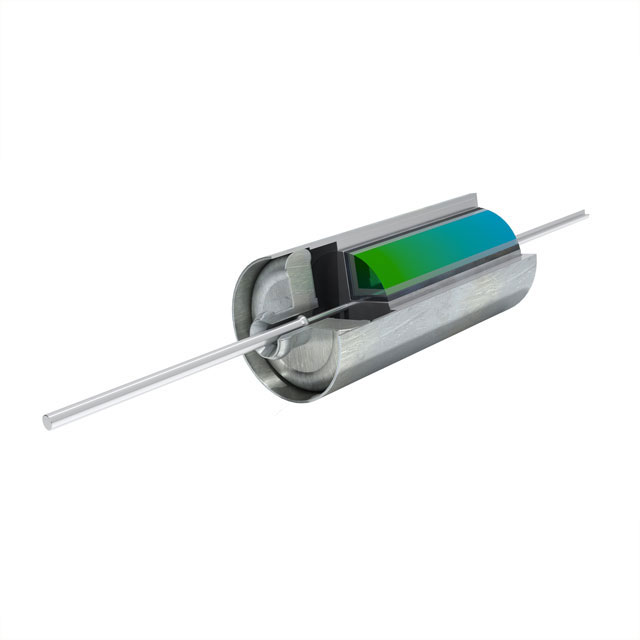

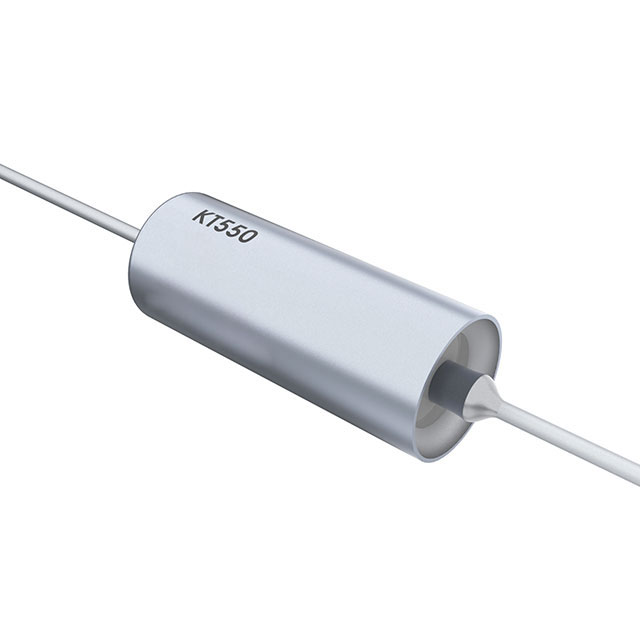

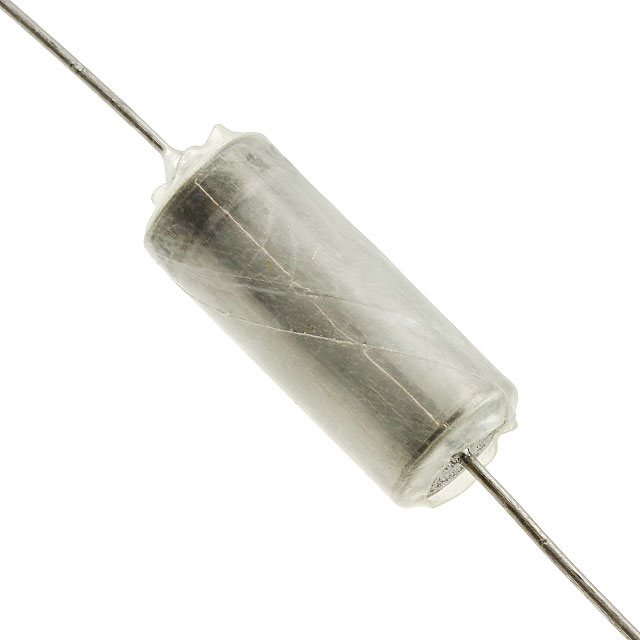

T550B Series

Manufacturer: KEMET

Catalog

Catalog

CAP TANT POLY 70UF 15V AXIAL

...

Part	Operating Temperature [Min]	Operating Temperature [Max]	Size / Dimension [x]	Size / Dimension [diameter]	Size / Dimension [diameter]	Size / Dimension [x]	Package / Case	Tolerance	Voltage - Rated	Capacitance	Lifetime @ Temp.	Type	Manufacturer Size Code	Mounting Type	Features	ESR (Equivalent Series Resistance)
KEMET T550B706K015AH	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	10 %	15 V	70 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B206M060AT4250	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	20 %	60 VDC	20 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B147K006AH4250	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	10 %	6 VDC	140 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B107K010AH	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	10 %	10 V	100 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B687M008AH	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	20 %	8 V	680 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B107M060AH42510100	-55 C	105 ░C	0.65 in	7.09 mm	0.279 in	16.51 mm	Axial	20 %	60 VDC	100 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose	100 mOhm
KEMET T550B127M015AT4251	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	20 %	15 V	120 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B107M010AH4250	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	20 %	10 V	100 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
KEMET T550B756K075TH4251	-55 C	105 ░C	0.65 in	7.09 mm	0.279 in	16.51 mm	Axial	10 %	75 V	75 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose	110 mOhm
KEMET T550B147K006AT	-55 C	105 ░C	0.641 in	7.14 mm	0.281 in	16.28 mm	Axial	10 %	6 VDC	140 µF	2000 Hrs	Hermetically Sealed	B	Through Hole	General Purpose
