1393483 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K

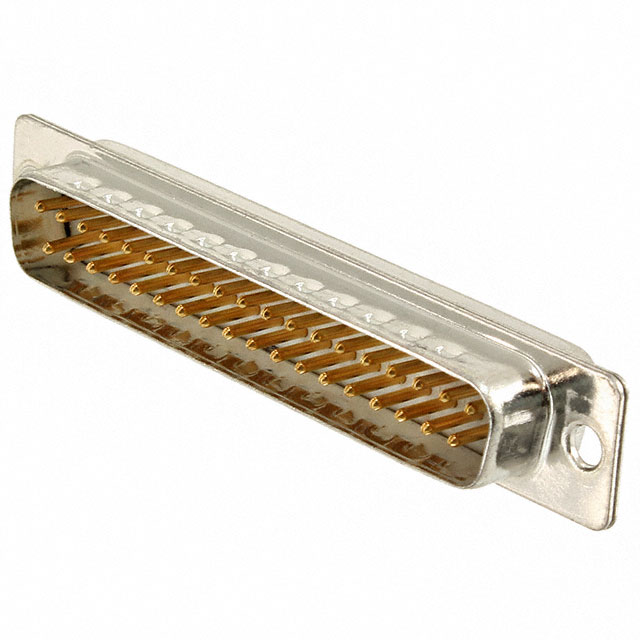

CONN D-SUB PLUG 37POS SLDR CUP
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Color | Contact Material | Contact Form | Dielectric Material | Current Rating (Amps) | Connector Style | Contact Finish | Number of Rows [custom] | Features | Flange Feature | Shell Size, Connector Layout | Shell Size, Connector Layout | Contact Type | Material Flammability Rating | Mounting Type | Number of Positions | Connector Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | -55 C | 125 °C | Gray | Brass | Stamped | Polybutylene Terephthalate (PBT) Polyester | 3 A | D-Sub | Gold | 2 | Grounding Indents | Housing/Shell (Unthreaded) | 4 | DC C | Signal | UL94 V-0 | Free Hanging (In-Line) | 37 | Plug Male Pins |
 TE Connectivity AMP Connectors | -55 C | 125 °C | Gray | Brass | Stamped | Polybutylene Terephthalate (PBT) Polyester | 3 A | D-Sub | Gold | 2 | Grounding Indents | Housing/Shell (Unthreaded) | 2 | Signal | UL94 V-0 | Free Hanging (In-Line) | 15 | Plug Male Pins |
