200MSP6 Series

Manufacturer: E-Switch

Catalog

SWITCH TOGGLE SPST 0.4VA 20V

Part	Actuator Material	Electrical Life (Cycles)	Bushing Thread	Circuit	Actuator Type	Panel Cutout Diameter	Panel Cutout Shape	Actuator Length	Illumination	Voltage Rating - DC	Switch Function	Voltage Rating - AC	Mounting Type	Features	Operating Temperature (Max)	Operating Temperature (Min)	Termination Style	Current Rating
E-Switch 200MSP6T1B1VS2REH	Brass Chrome Plated	30000 Cycles	10-48	SPST	Standard Round	4.95 mm	Circular	9.4 mm	Non-Illuminated	20 V	On-Off	20 V	Panel Mount	Epoxy Sealed Terminals	85 °C	-30 °C	PC Pin	0.4 VA

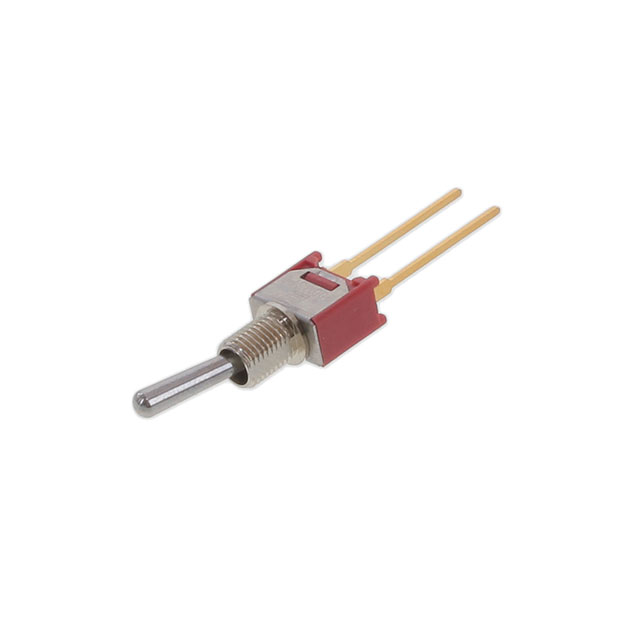

E-Switch 200MSP6T1B1M5RE	Brass Chrome Plated	30000 Cycles	10-48	SPST	Standard Round	4.95 mm	Circular	9.4 mm	Non-Illuminated	20 V	On-Off	20 V	Panel Mount	Epoxy Sealed Terminals	85 °C	-30 °C	Wire Wrap	0.4 VA
E-Switch 200MSP6T1B1VS2RE	Brass Chrome Plated	30000 Cycles	10-48	SPST	Standard Round	4.95 mm	Circular	9.4 mm	Non-Illuminated	20 V	On-Off	20 V	Panel Mount	Epoxy Sealed Terminals	85 °C	-30 °C	PC Pin	0.4 VA
E-Switch 200MSP6T1B1M2RE	Brass Chrome Plated	30000 Cycles	10-48	SPST	Standard Round	4.95 mm	Circular	9.4 mm	Non-Illuminated	20 V	On-Off	20 V	Panel Mount	Epoxy Sealed Terminals	85 °C	-30 °C	PC Pin	0.4 VA
