0355-0 Series

Catalog

CONN PIN RCPT .040-.050 SOLDER

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Tail Type	Contact Material	Socket Depth	Socket Depth	Length - Overall	Length - Overall	Mounting Hole Diameter [diameter]	Mounting Hole Diameter [diameter]	Termination	Contact Finish	Contact Finish Thickness	Contact Finish Thickness	Pin Hole Diameter [diameter]	Pin Hole Diameter [diameter]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]

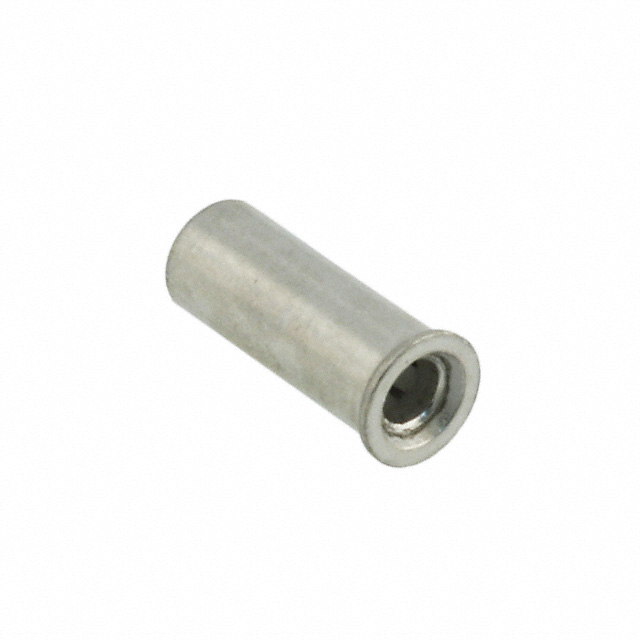

Mill-Max Manufacturing Corp. 0355-0-15-80-02-80-10-0	-55 C	125 °C	3 mm	0.118 in	No Tail	Beryllium Copper	6.6 mm	0.26 "	0.29 in	7.37 mm	0.102 in	2.59 mm	Solder	Tin	200 Áin	5.08 Ám	0.068 "	1.73 mm	0.04 in	1.27 mm	1.02 mm	0.05 in
Mill-Max Manufacturing Corp. 0355-0-15-80-02-27-10-0	-55 C	125 °C	3 mm	0.118 in	No Tail	Beryllium Copper	6.6 mm	0.26 "	0.29 in	7.37 mm	0.102 in	2.59 mm	Solder	Gold	30 Áin	0.76 Ám	0.068 "	1.73 mm	0.04 in	1.27 mm	1.02 mm	0.05 in

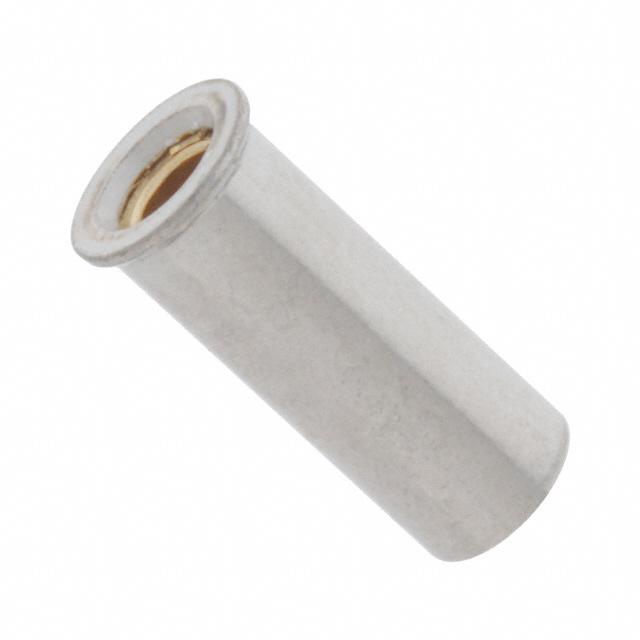

Mill-Max Manufacturing Corp. 0355-0-15-01-02-27-10-0	-55 C	125 °C	3 mm	0.118 in	No Tail	Beryllium Copper	6.6 mm	0.26 "	0.29 in	7.37 mm	0.102 in	2.59 mm	Solder	Gold	30 Áin	0.76 Ám	0.068 "	1.73 mm	0.04 in	1.27 mm	1.02 mm	0.05 in

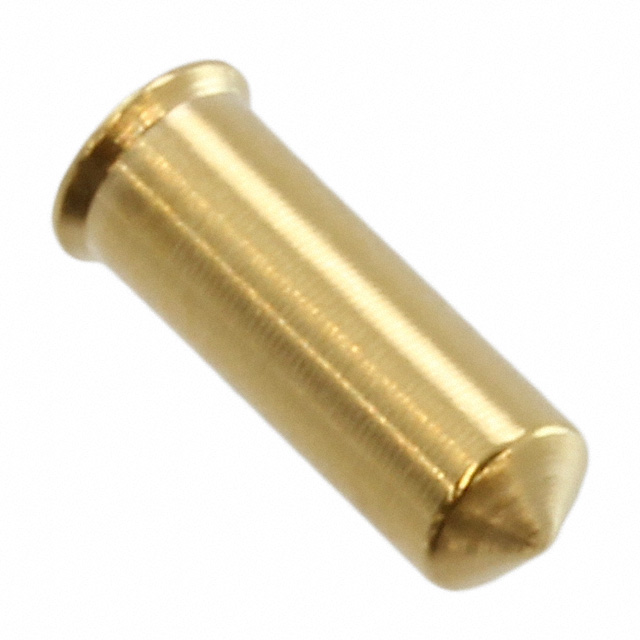

Mill-Max Manufacturing Corp. 0355-0-15-15-02-27-10-0	-55 C	125 °C	3 mm	0.118 in	No Tail	Beryllium Copper	6.6 mm	0.26 "	0.29 in	7.37 mm	0.102 in	2.59 mm	Solder	Gold	30 Áin	0.76 Ám	0.068 "	1.73 mm	0.04 in	1.27 mm	1.02 mm	0.05 in
