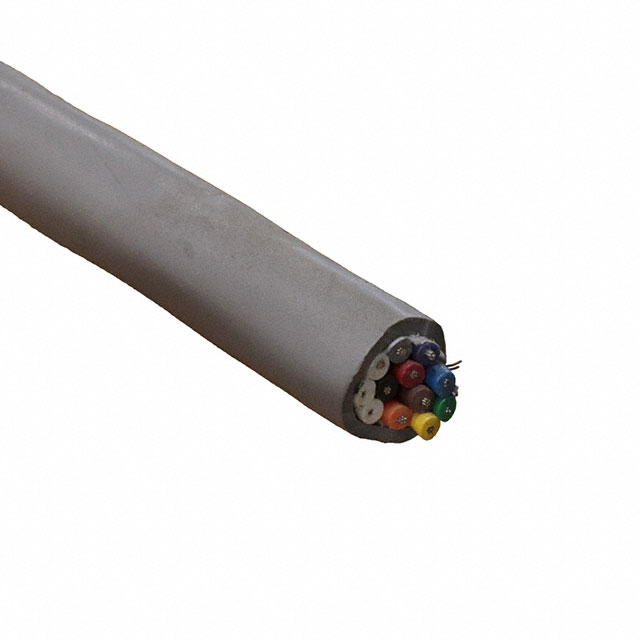

5410/12 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
CABLE 12COND 22AWG SHLD
| Part | Shield Material | Shield Coverage | Voltage | Conductor Insulation | Conductor Strand [custom] | Conductor Strand [custom] | Usage | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Ratings | Wire Gauge | Jacket Color | Cable Type | Number of Conductors | Length | Length | Jacket (Insulation) Material | Features | Conductor Material | Operating Temperature [Min] | Operating Temperature [Max] | Shield Type | Length [x] | Length [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Aluminum | 100 % | 600 V | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Communication Control | 13.34 mm | 0.525 in | 1.6 mm | 0.063 in | ISO 10993 UL Style 2501 | 22 AWG | Slate | Multi-Conductor | 12 | 152.4 m | 500 ft | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -30 ░C | 105 ░C | Foil | ||
ALPHA WIRE | Aluminum | 100 % | 600 V | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Communication Control | 13.34 mm | 0.525 in | 1.6 mm | 0.063 in | ISO 10993 UL Style 2501 | 22 AWG | Black | Multi-Conductor | 12 | 304.8 m | 1000 ft | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -30 ░C | 105 ░C | Foil | ||
 ALPHA WIRE | Aluminum | 100 % | 600 V | Poly-Vinyl Chloride (PVC) | 30 AWG | 7 | Communication Control | 13.34 mm | 0.525 in | 1.6 mm | 0.063 in | ISO 10993 UL Style 2501 | 22 AWG | Slate | Multi-Conductor | 12 | Poly-Vinyl Chloride (PVC) | Biological Compatibility Drain Wire Rip Cord | Copper Tinned | -30 ░C | 105 ░C | Foil | 100 ft | 30.5 m |
