133-04 Series

Catalog

CABLE MOUNTING & ACCESSORIES EDGE CLIP AND TAPE CLIP, PANEL THICKNESS .11" - .12 ", 1.43" LONG, PA66HIRHS, GRAY, 3000/CTN

Part	Panel Thickness [Min]	Panel Thickness [Max]	Panel Thickness [Max]	Panel Thickness [Min]	Width [y]	Width [y]	Height	Height [z]	Color	Material	Mounting Type	Type	Length [x]	Length [x]	Height	Width [x]	Width [x]	Bundle Center to Mounting Center	Bundle Center to Mounting Center	Height [z]	Features	Panel Hole Size [y]	Panel Hole Size [x]	Panel Hole Size [y]	Panel Hole Size [x]	Type Attributes	Opening Size [Max]	Opening Size [Min]	Opening Size [Min]	Opening Size [Max]

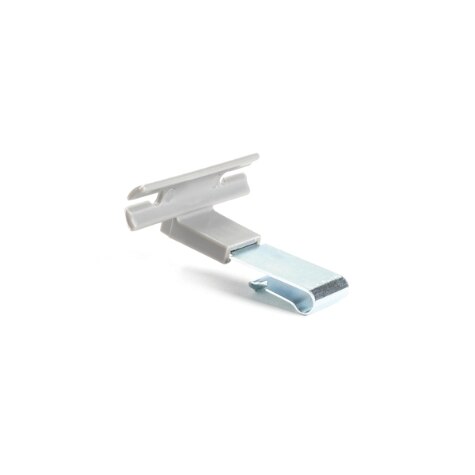

HELLERMANNTYTON 133-04486	2.79 mm	0.12 in	3.05 mm	0.11 in	11.18 mm	0.44 in	4.83 mm	0.19 in	Gray	Polyamide (PA66) Nylon 6/6	Weld Stud	Clip Bundling

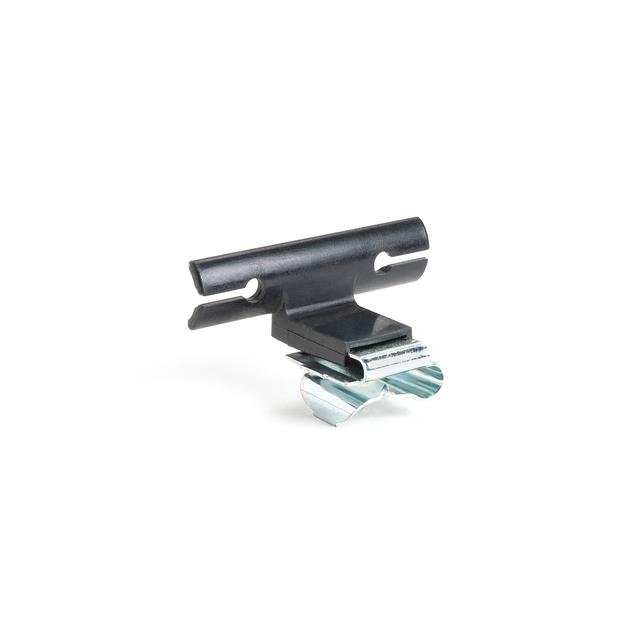

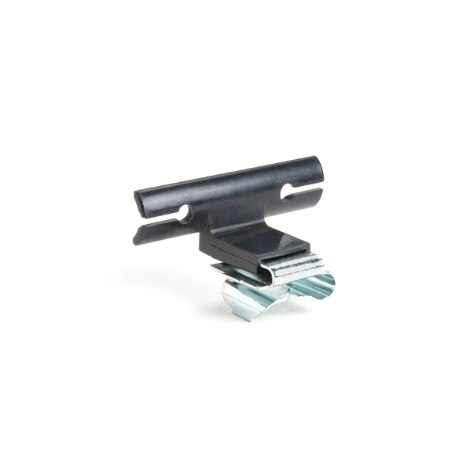

HELLERMANNTYTON 133-04243	1.52 mm	0.11 "	2.79 mm	0.06 in			10.92 mm		Black	Polyamide (PA66) Nylon 6/6	Weld Stud	Clip Multi-Function	0.56 in	14.22 mm	0.43 in	0.63 in	16 mm

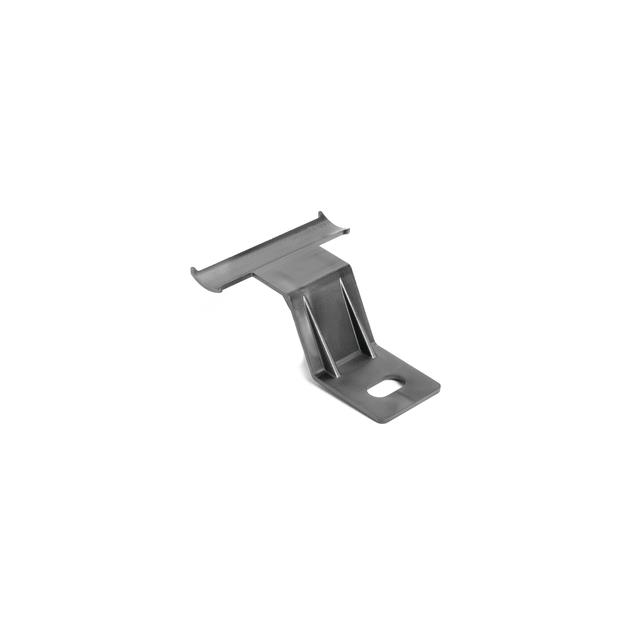

HELLERMANNTYTON 133-04258								0.914 "	Silver	Polyphenylene Sulfide (PPS)	Fastener	Clip Bundling	2.5 in	63.5 mm		1.96 in	49.78 mm	47 mm	1.85 in	23.22 mm	Chemical Resistant	12.45 mm	0.25 "	0.49 "	6.35 mm

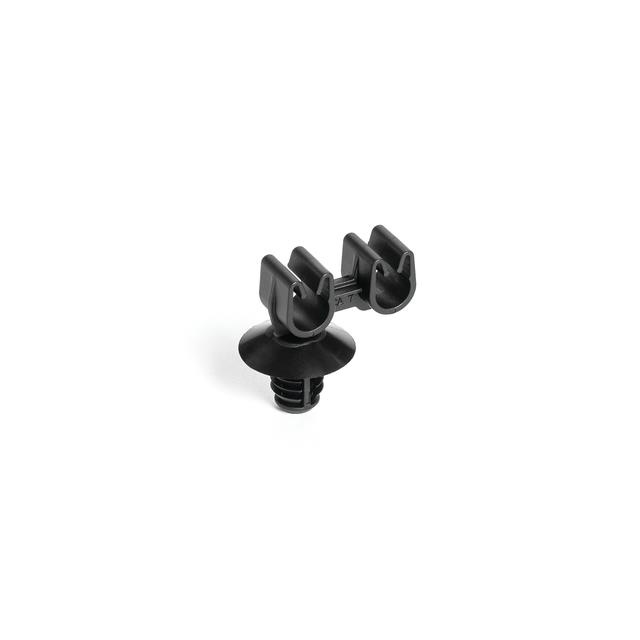

HELLERMANNTYTON 133-04043									Black	Polyamide (PA66) Nylon 6/6	Fir Tree	Clip C-Type														Open	0.276 in	6.5 mm	0.256 in	7 mm

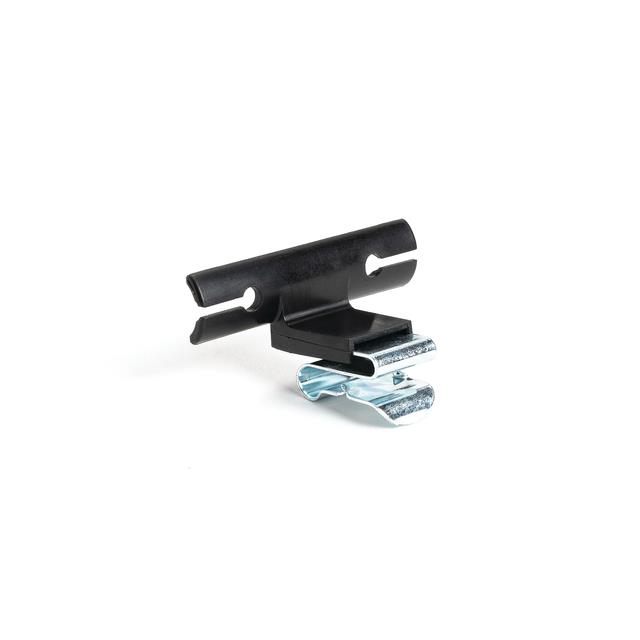

HELLERMANNTYTON 133-04257	1.52 mm	0.08 in	2.03 mm	0.06 in			9.65 mm		Black	Polyamide (PA66) Nylon 6/6	Weld Stud	Clip Multi-Function	0.61 "	15.5 mm	0.38 in	0.39 "	9.91 mm
