66195 Series

Catalog

CP08,127,06,MM,EP W4.5

Part	Operating Temperature	Qmax @ Th	Features	Current - Max [Max]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Max [Max]	Resistance	Delta Tmax @ Th	Number of Stages	Height	Height [z]

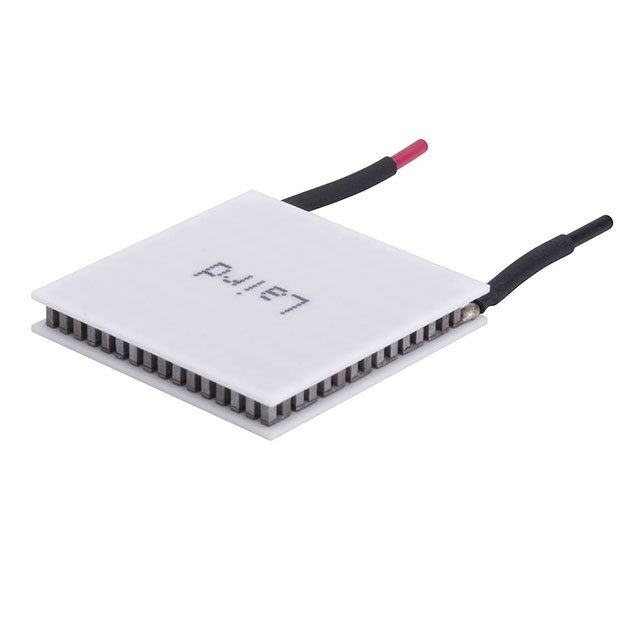

Laird Thermal Systems, Inc. 66195-508	80 °C	18.1 W	Lead Wires Sealed - Epoxy	2.1 A	24.64 mm	24.64 mm	14.4 V	6.31 Ohms	67 °C	1	3.61 mm

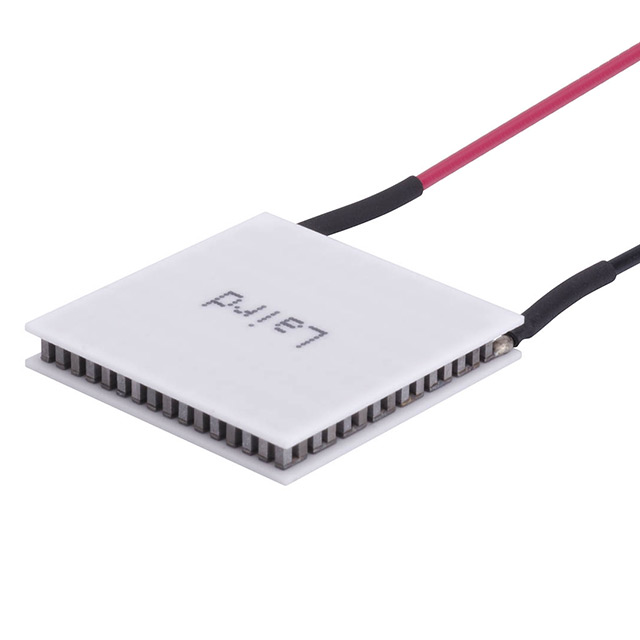

Laird Thermal Systems, Inc. 66195-505	80 °C	18.1 W	Lead Wires Non-Sealed	2.1 A	24.64 mm	24.64 mm	14.4 V	6.31 Ohms	67 °C	1		3.4 mm

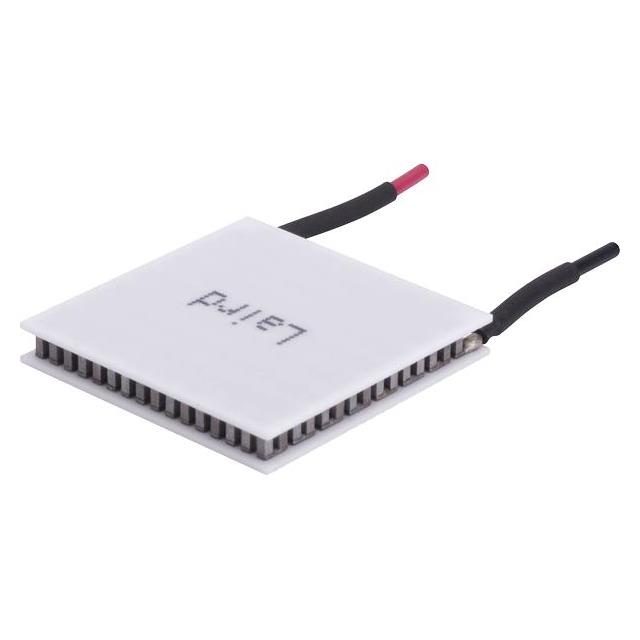

Laird Thermal Systems, Inc. 66195-504	80 °C	18.1 W	Lead Wires Sealed - Silicone RTV	2.1 A	24.64 mm	24.64 mm	14.4 V	6.31 Ohms	67 °C	1		3.4 mm
