4259-1 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

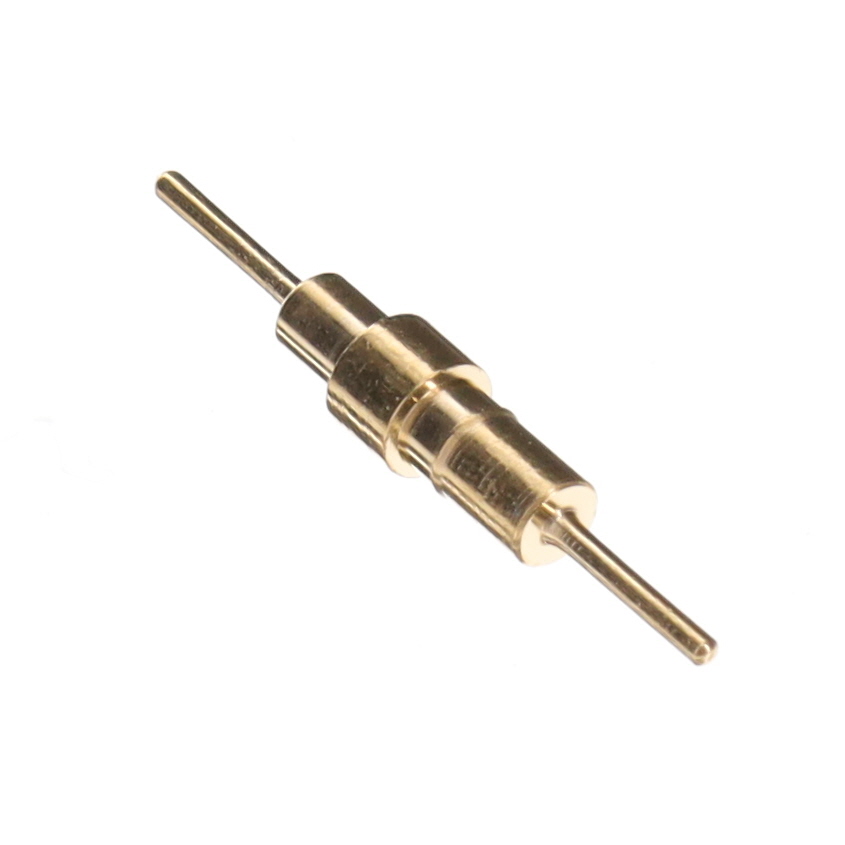

CONN PC PIN CIRC .018DIA GOLD
| Part | Termination | Length - Overall [x] | Length - Overall [x] | Insulation | Contact Finish | Length - Above Flange | Length - Above Flange | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Terminal Style | Flange Diameter [diameter] | Flange Diameter [diameter] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Contact Finish Thickness | Contact Finish Thickness | Pin Size - Below Flange [diameter] | Pin Size - Below Flange [diameter] | Mounting Type | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | Press-Fit | 11.68 mm | 0.46 in | Non-Insulated | Gold | 4.7 mm | 0.185 in | Brass Alloy | 1.45 mm | 0.057 in | Double End | 0.072 " | 1.83 mm | 0.018 in | 0.46 mm | 0.25 Ám | 10 Áin | 0.46 mm | 0.018 in | Through Hole | PC Pin |
 Mill-Max Manufacturing Corp. | Press-Fit | 11.68 mm | 0.46 in | Non-Insulated | Gold | 4.7 mm | 0.185 in | Brass Alloy | 1.45 mm | 0.057 in | Double End | 0.072 " | 1.83 mm | 0.018 in | 0.46 mm | 1.27 µm | 50 µin | 0.46 mm | 0.018 in | Through Hole | PC Pin |
