M2042B2 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH TOGGLE 4PDT 6A 125V
| Part | Actuator Material | Electrical Life | Bushing Thread | Actuator Length [x] | Actuator Type | Voltage Rating - DC | Features | Current Rating (Amps) | Voltage Rating - AC | Panel Cutout Dimensions [diameter] | Switch Function | Circuit | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Illumination | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

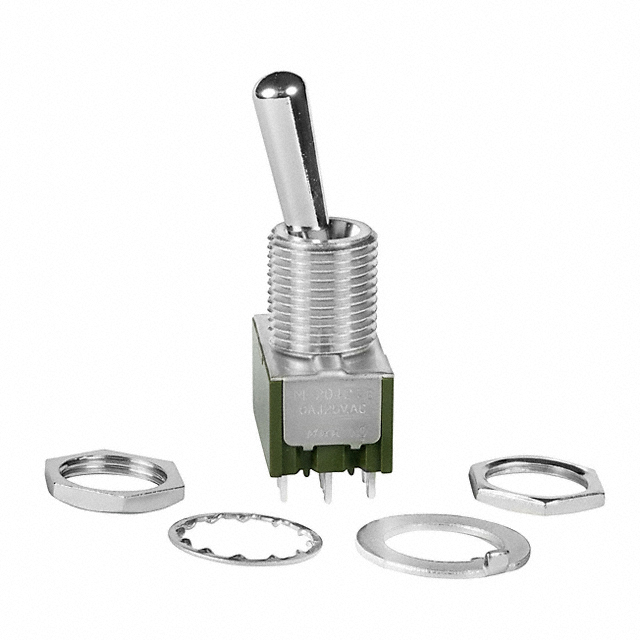

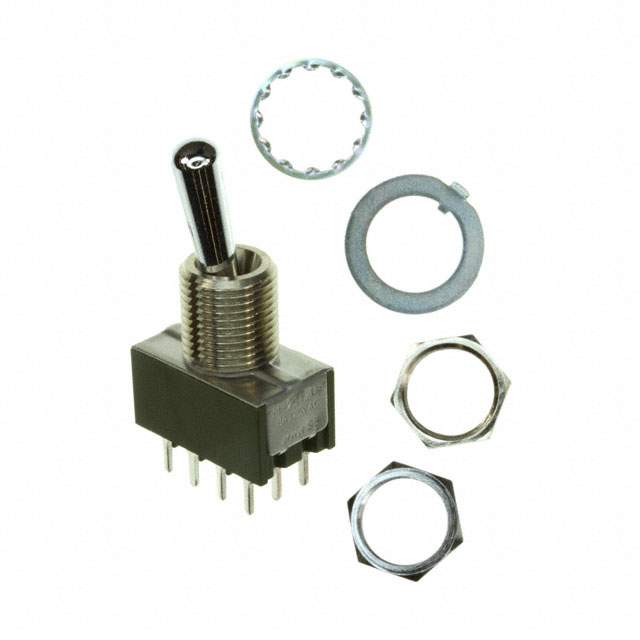

 NKK Switches | Brass Chrome Plated | 25000 Steps | M12 x 1 | 17.5 mm | Standard Round | 30 V | Epoxy Sealed Terminals | 4 A 6 A | 125 V | 12.5 mm | On-On | 4PDT | 85 °C | -30 ░C | PC Pin | Non-Illuminated | Panel Mount |
 NKK Switches | Brass Chrome Plated | 25000 Steps | M12 x 1 | 17.5 mm | Standard Round | 30 V | Epoxy Sealed Terminals | 4 A 6 A | 125 V | 12.5 mm | On-On | 4PDT | 85 °C | -30 ░C | Solder Lug | Non-Illuminated | Panel Mount |
