POE Series
Manufacturer: American Electrical Inc.
Beta
⌘K

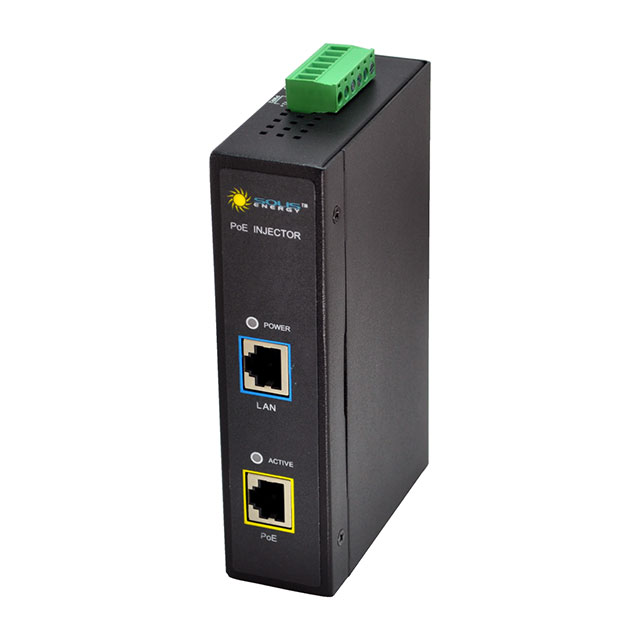

POE INJECTOR 33W
| Part | Input Connector | Output Connector | Voltage - Input [Max] | Voltage - Input [Min] | Compliance | Mounting Type | Features | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Power (Watts) - Per Port | Operating Temperature [Min] | Operating Temperature [Max] | Number of Ports | Data Rate | Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 American Electrical Inc. | RJ45 (Data) Terminal Block (Power) | RJ45 (Data Power) | 30 V | 10 V | IEEE802.3af IEEE802.3at | DIN Rail | OCP | 2.95 " | 4.53 " | 32 mm | 1.26 in | 115 mm | 75 mm | 33 W | -40 C | 65 °C | 1 | 10 Mbps 100 Mbps 1000 Mbps | Midspan Injector |
 American Electrical Inc. | RJ45 (Data) Terminal Block (Power) | RJ45 (Data Power) | 57 V | 44 V | IEEE802.3bt | DIN Rail | OCP | 2.95 " | 4.53 " | 32 mm | 1.26 in | 115 mm | 75 mm | 95 W | -40 C | 65 °C | 1 | 10 Mbps 100 Mbps 1000 Mbps | Midspan Injector |
