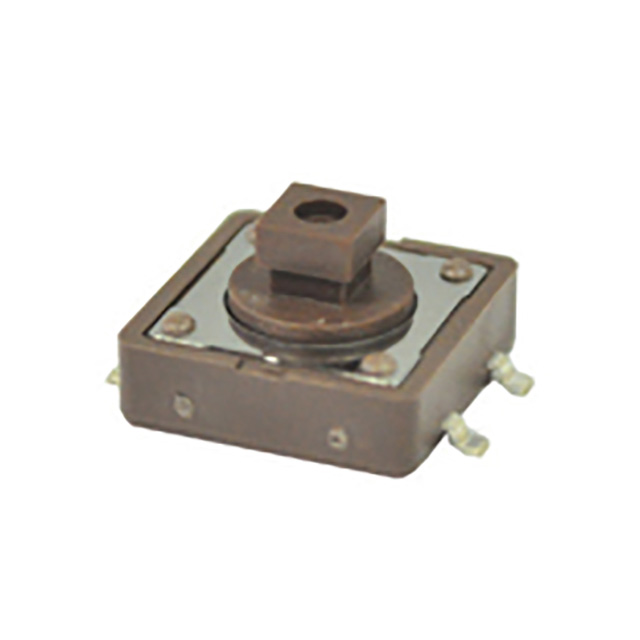

TL3300 Series

Manufacturer: E-Switch

Catalog

MICROSWITCH TACT; SPST-NO; POS: 2; 0.05A/12VDC; SMT; NONE; 2.6N

Part	Mechanical Life	Switch Travel	Illumination	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Actuator Orientation	Switch Function	Mounting Type	Contact Rating @ Voltage	Circuit	Outline [y]	Outline [x]	Actuator Height off PCB, Vertical [z]	Operating Force	Actuator Type	Features	Actuator Height off PCB, Vertical

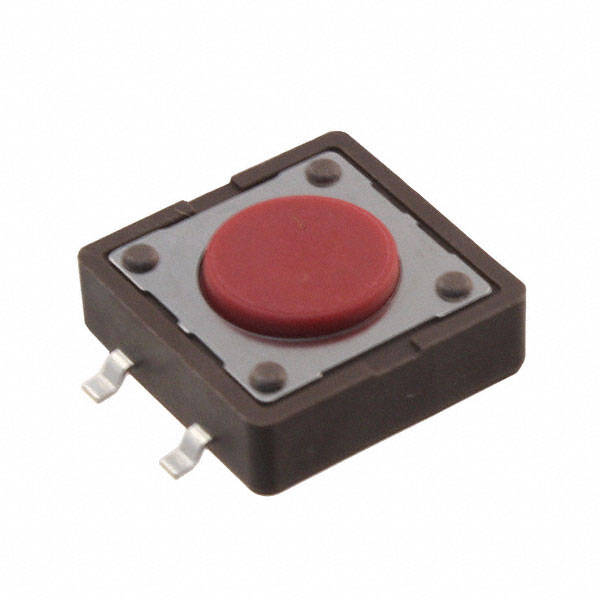

E-Switch TL3300DF260Q	100000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm	4.3 mm	260 gf	Standard

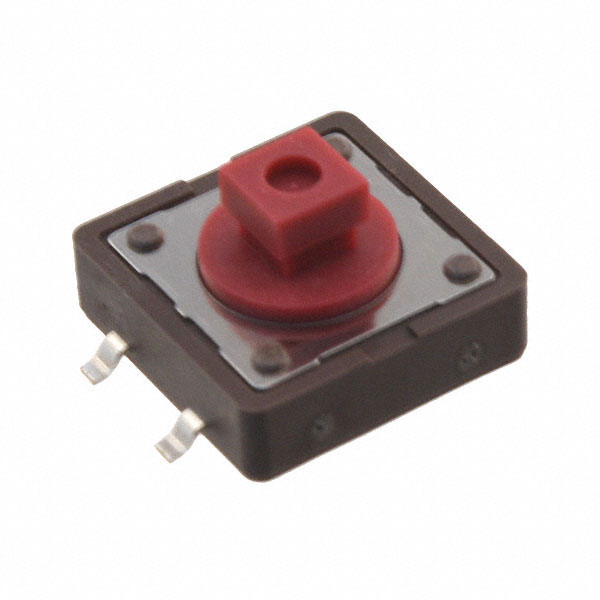

E-Switch TL3300AF260Q	100000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm	7.3 mm	260 gf	Plunger for Cap
E-Switch TL3300AF160QSSDOME	1000000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm	7.3 mm	160 gf	Plunger for Cap	Stainless Steel Contact Dome
E-Switch TL3300DF320Q	100000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm	4.3 mm	320 gf	Standard

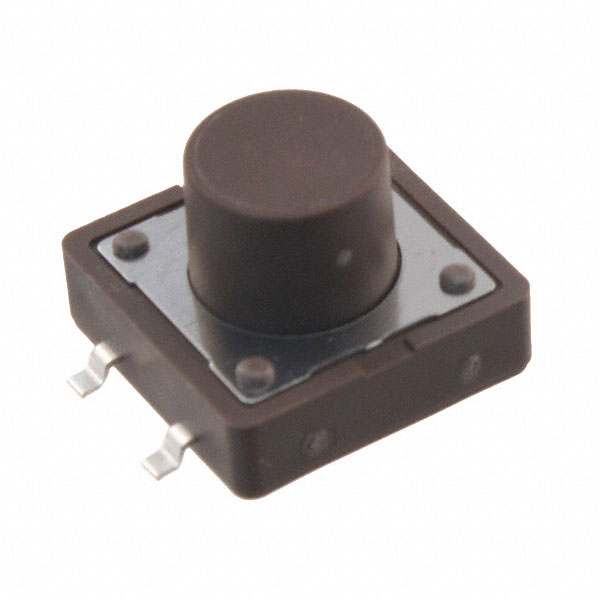

E-Switch TL3300CF160Q	200000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm		160 gf	Standard		8.5 mm

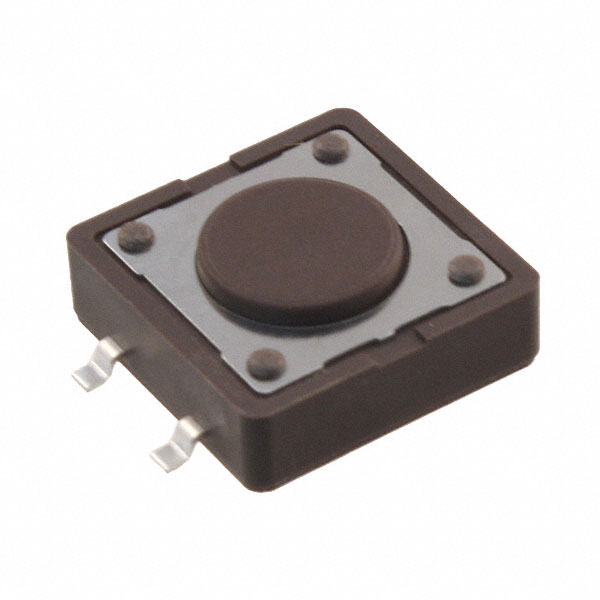

E-Switch TL3300DF160Q	200000 Cycles	0.35 mm	Non-Illuminated	Gull Wing	-25 °C	70 °C	Top Actuated	Off-Mom	Surface Mount	0.05 A 12 VDC	SPST-NO	12 mm	12 mm	4.3 mm	160 gf	Standard
