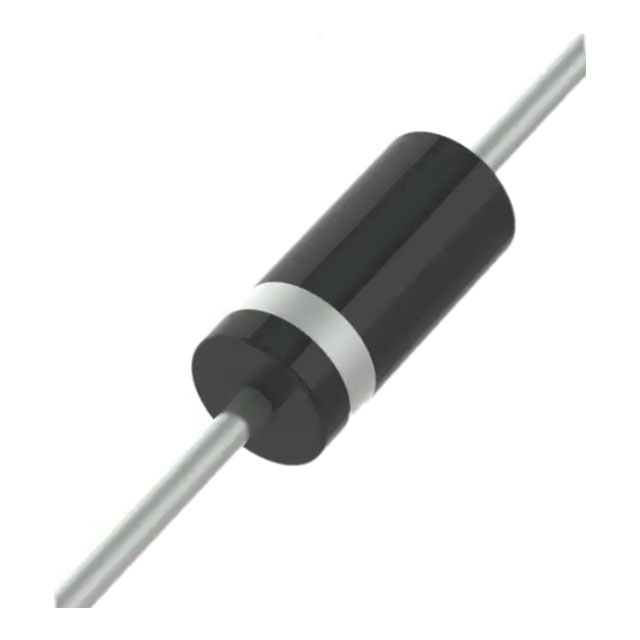

UF102 Series
Manufacturer: Panjit International Inc.
Beta
⌘K
GLASS PASSIVATED JUNCTION ULTRAF
| Part | Speed | Operating Temperature - Junction [Min] | Operating Temperature - Junction [Max] | Voltage - DC Reverse (Vr) (Max) [Max] | Current - Average Rectified (Io) | Reverse Recovery Time (trr) | Technology | Mounting Type | Supplier Device Package | Package / Case | Capacitance @ Vr, F | Voltage - Forward (Vf) (Max) @ If [Max] | Current - Reverse Leakage @ Vr |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panjit International Inc. | 200 mA 500 ns | -55 °C | 150 °C | 200 V | 1 A | 50 ns | Standard | Through Hole | DO-41 | Axial DO-204AL DO-41 | 17 pF | 1 V | 1 µA |
