MRA206 Series

Catalog

SWITCH ROTARY 2-6POS 250MA 125V

Part	Panel Cutout Dimensions [diameter]	Mounting Type	Actuator Length [x]	Number of Poles per Deck	Actuator Type	Number of Positions [Min]	Number of Positions [Max]	Features	Voltage Rating - AC	Contact Finish	Angle of Throw	Circuit per Deck	Depth Behind Panel [z]	Contact Timing	Contact Material	Number of Decks [custom]	Termination Style	Index Stops	Current Rating (Amps)
NKK Switches MRA206-BH	0.25 in	Panel Mount Through Hole	14.3 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
NKK Switches MRA206-BF	0.25 in	Panel Mount Through Hole	14.3 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA

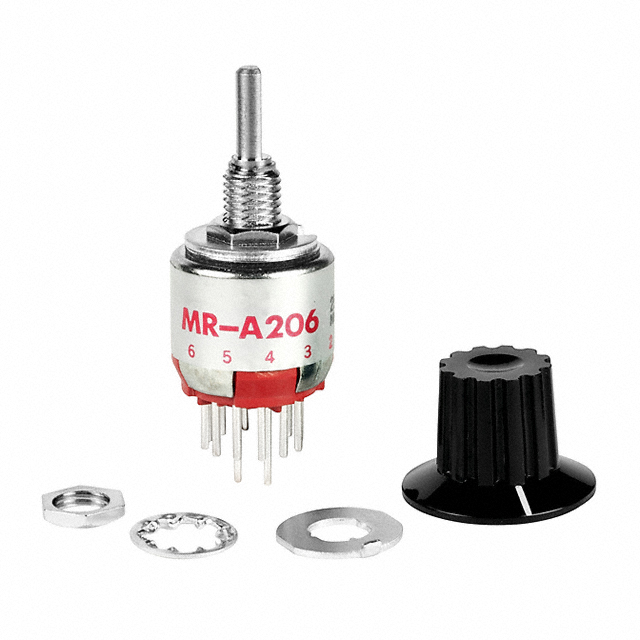

NKK Switches MRA206-A	0.25 in	Panel Mount Through Hole	13 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
NKK Switches MRA206-CH	0.25 in	Panel Mount Through Hole	15.8 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
NKK Switches MRA206-BE	0.25 in	Panel Mount Through Hole	14.3 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA

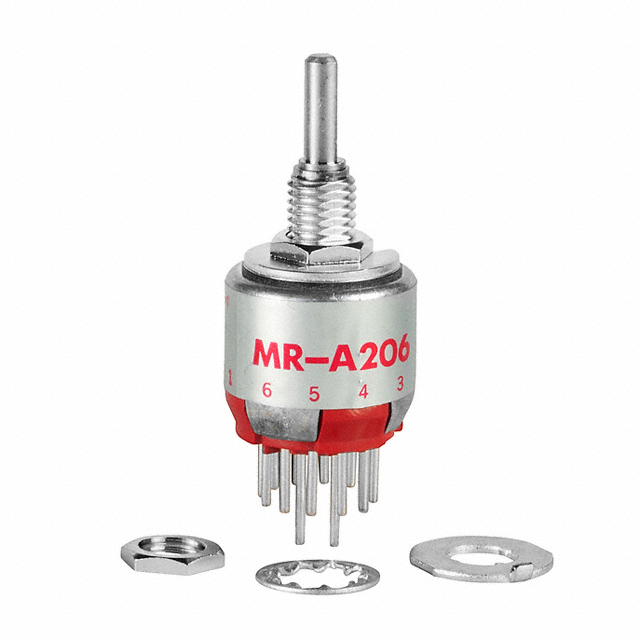

NKK Switches MRA206	0.25 in	Panel Mount Through Hole	10 mm	2	Flatted (3.17mm Dia)	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
NKK Switches MRA206-BC	0.25 in	Panel Mount Through Hole	14.3 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
NKK Switches MRA206-BG	0.25 in	Panel Mount Through Hole	14.3 mm	2	Knob	2	6	Process Sealed	125 V	Silver	30 °	DP6T	17 mm	Non-Shorting (BBM)	Copper	1	PC Pin	Adjustable	250 mA
