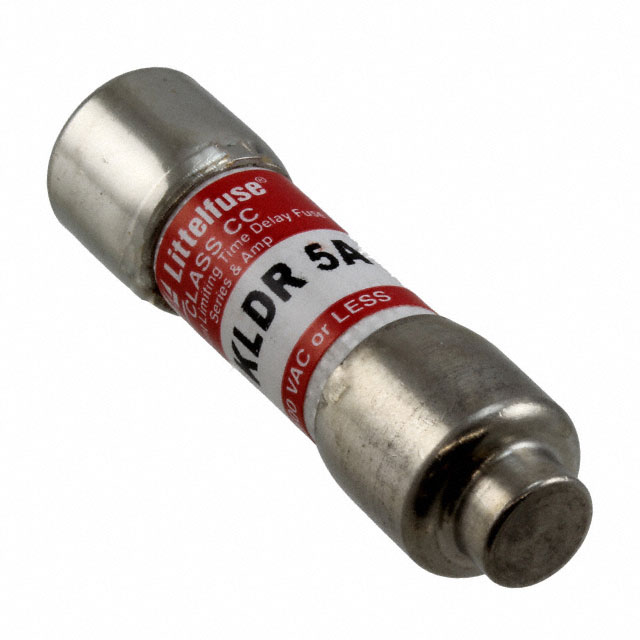

KLDR005 Series
FUS 600V T/D CLASS CC 5A 100PK RoHS
Manufacturer: Littelfuse/Commercial Vehicle Products
Catalog
FUS 600V T/D CLASS CC 5A 100PK RoHS
Description
AI
KLDR005 is a Class CC fuse with an ampere rating of 5.
Beta
⌘K
FUS 600V T/D CLASS CC 5A 100PK RoHS
FUS 600V T/D CLASS CC 5A 100PK RoHS
FUS 600V T/D CLASS CC 5A 100PK RoHS
| Part | Response Time | Mounting Type | Package / Case | Package / Case [y] | Package / Case [x] | Size / Dimension [diameter] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [diameter] | Approval Agency | Voltage Rating - AC | Current Rating (Amps) | Breaking Capacity @ Rated Voltage | Fuse Type | Class |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Littelfuse/Commercial Vehicle Products | Slow Blow | Requires Holder | 5AG | 38 mm | 10 mm | 10.3 mm | 1.5 in | 38.1 mm | 0.406 in | CE CSA UL | 600 VAC | 5 A | 20 kA 200 kA | Cartridge | CC |
 Littelfuse/Commercial Vehicle Products | Slow Blow | Requires Holder | 5AG | 38 mm | 10 mm | 10.3 mm | 1.5 in | 38.1 mm | 0.406 in | CE CSA UL | 600 VAC | 5 A | 20 kA 200 kA | Cartridge | CC |
