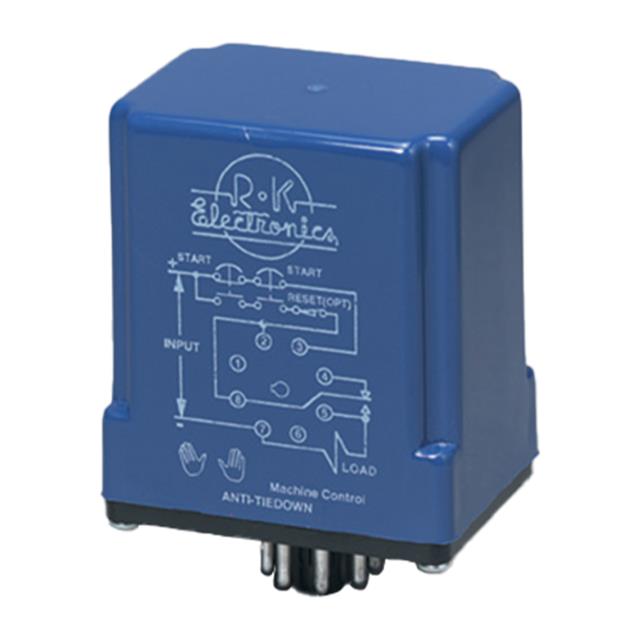

ATB-24D Series

Catalog

RELAY TIME DELAY 10A 120V

Part	Pin Count	Termination Style	Contact Rating (Current)	Voltage Rating	Timing Adjustment Method	Timing Initiate Method	Mounting Type	Circuit	Relay Type	Function	Voltage - Supply	Delay Time (Minimum)	Delay Time (Maximum)
R-K Electronics, Inc. ATB-24D-3-1.5S	8	Plug In	10 A	120 240VAC	Fixed	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC
R-K Electronics, Inc. ATB-24D-3-5S	8	Plug In	10 A	120 240VAC	Fixed	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.05 Sec	5 Sec
R-K Electronics, Inc. ATB-24D-4-10S	8	Plug In	10 A	120 240VAC	Hand Dial	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.1 Sec	10 Sec
R-K Electronics, Inc. ATB-24D-3-2.5S	8	Plug In	10 A	120 240VAC	Fixed	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC
R-K Electronics, Inc. ATB-24D-4-1S	8	Plug In	10 A	120 240VAC	Hand Dial	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.05 Sec	1 Sec
R-K Electronics, Inc. ATB-24D-4-5S	8	Plug In	10 A	120 240VAC	Hand Dial	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.05 Sec	5 Sec
R-K Electronics, Inc. ATB-24D-3-1S	8	Plug In	10 A	120 240VAC	Fixed	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.05 Sec	1 Sec
R-K Electronics, Inc. ATB-24D-1	8	Plug In	10 A	120 240VAC	Fixed	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC
R-K Electronics, Inc. ATB-24D-4-1M	8	Plug In	10 A	120 240VAC	Hand Dial	Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC	0.6 Sec	60 Sec
R-K Electronics, Inc. ATB-24D-2	8	Plug In	10 A	120 240VAC		Input Voltage	Socketable	SPDT (1 Form C)	Mechanical Relay	Programmable (Multi-Function)	24 VDC
