1478884 Series

Catalog

CABLE GLAND 13-18.01MM M32 BRASS

Part	Includes	Thread Length	Thread Length	Ingress Protection	Type	Panel Hole Size	Panel Hole Size	Material	Outside Cable Diameter (Min) [Min] [diameter]	Outside Cable Diameter (Min)	Outside Cable Diameter (Max) [Max] [diameter]	Outside Cable Diameter (Max) [Max] [diameter]	Thread Size	Color	Outside Cable Diameter (Min) [Min] [diameter]
TE Connectivity Raychem Cable Protection 1478884-5	Locknut	0.591 in	15 mm	IP68 - Dust Tight Waterproof	Cable Gland	1.26 in	32 mm	Brass Nickel Plated	0.512 in	13 mm	0.709 in	18.01 mm	M32x1.5	Silver

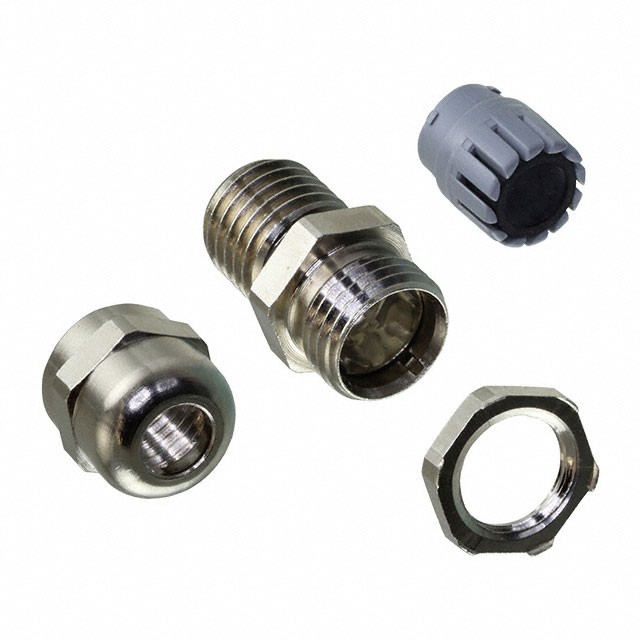

TE Connectivity Raychem Cable Protection 1478884-1	Locknut	0.472 in	12 mm	IP68 - Dust Tight Waterproof	Cable Gland	0.472 in	12 mm	Brass Nickel Plated	0.118 in		0.256 "	6.5 mm	M12x1.5	Silver	3 mm
