861812 Series
Manufacturer: ALPHA WIRE
Beta
⌘K

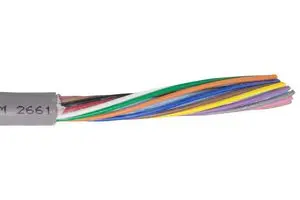

CABLE 12COND 18AWG SLATE
| Part | Cable Type | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Features | Length [x] | Length [x] | Jacket (Insulation) Material | Voltage | Wire Gauge | Ratings | Length | Length | Jacket Color | Number of Conductors | Conductor Insulation | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | Multi-Conductor | 8.94 mm | 0.352 " | Oil Resistant | 30.5 m | 100 ft | Poly-Vinyl Chloride (PVC) | 300 V | 18 AWG | UL Style 2661 | 10 ft | 3.05 m | Slate | 12 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 41 strands | 34 AWG |
ALPHA WIRE | Multi-Conductor | 8.94 mm | 0.352 " | Oil Resistant | 152.4 m | 500 ' | Poly-Vinyl Chloride (PVC) | 300 V | 18 AWG | UL Style 2661 | Slate | 12 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 41 strands | 34 AWG | ||
 ALPHA WIRE | Multi-Conductor | 8.94 mm | 0.352 " | Oil Resistant | Poly-Vinyl Chloride (PVC) | 300 V | 18 AWG | UL Style 2661 | 1000 ft | 304.8 m | Slate | 12 | Poly-Vinyl Chloride (PVC) | Copper Tinned | 41 strands | 34 AWG |
