9272 Series
Manufacturer: Belden Inc.
Beta
⌘K

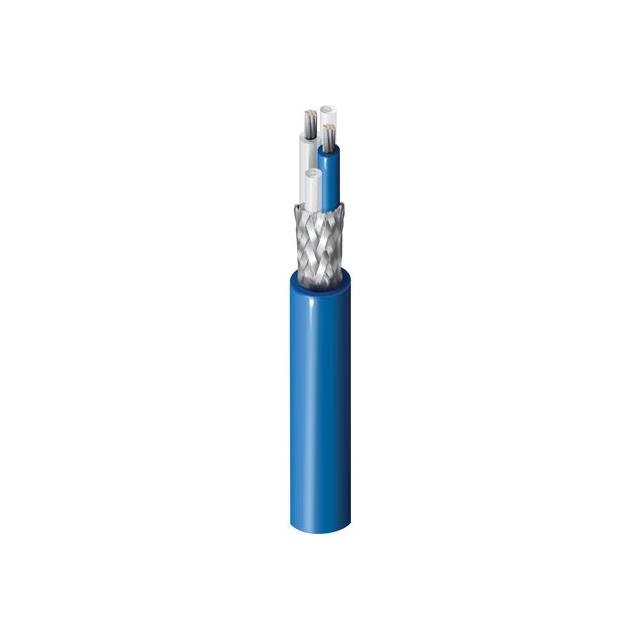

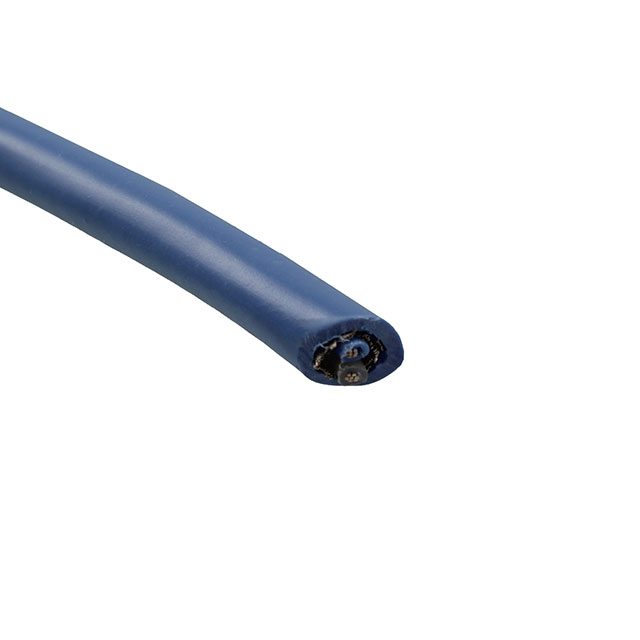

TWINAX 20AWG 78 OHM
| Part | Conductor Material | VoP, Velocity of Propagation | Shield Coverage | Operating Temperature [Min] | Operating Temperature [Max] | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Material | Impedance | Jacket Color | Length [x] | Length [x] | Wire Gauge | Conductor Strand | Shield Type | Cable Type | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | Copper Tinned | 66 | 93 % | -20 ░C | 60 °C | Copper Tinned | 0.244 in | 6.2 mm | Poly-Vinyl Chloride (PVC) | 78 Ohms | Blue | 152.4 m | 500 ft | 20 AWG | 7 Strands 28 AWG | Braid | Twinaxial | ||
 Belden Inc. | Copper Tinned | 66 | 93 % | -20 ░C | 60 °C | Copper Tinned | 0.244 in | 6.2 mm | Poly-Vinyl Chloride (PVC) | 78 Ohms | Blue | 20 AWG | 7 Strands 28 AWG | Braid | Twinaxial | 100 ' | 30.48 m | ||
Belden Inc. | Copper Tinned | 66 | 93 % | -20 ░C | 60 °C | Copper Tinned | 0.244 in | 6.2 mm | Poly-Vinyl Chloride (PVC) | 78 Ohms | Blue | 152.4 m | 500 ft | 20 AWG | 7 Strands 28 AWG | Braid | Twinaxial |
