KBPC10 Series

Catalog

BRIDGE 1PH KBPC 1600V 25A 150DEG

Part	Current - Reverse Leakage @ Vr	Diode Type	Supplier Device Package	Voltage - Peak Reverse (Max)	Technology	Voltage - Forward (Vf) (Max) @ If	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case	Current - Average Rectified (Io)	Voltage - Peak Reverse (Max) [Max]
Diotec Semiconductor KBPC10/15/2516FP	10 µA	Single Phase	KBPC FP	1.6 kV	Standard	1.2 V	-50 °C	150 °C	Chassis Mount	4-Square KBPC FP	25 A
Diotec Semiconductor KBPC10/15/2510WP	10 çA	Single Phase	KBPC WP		Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A	1 kV
Diotec Semiconductor KBPC10/15/2504WP	10 µA	Single Phase	KBPC WP		Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A	400 V

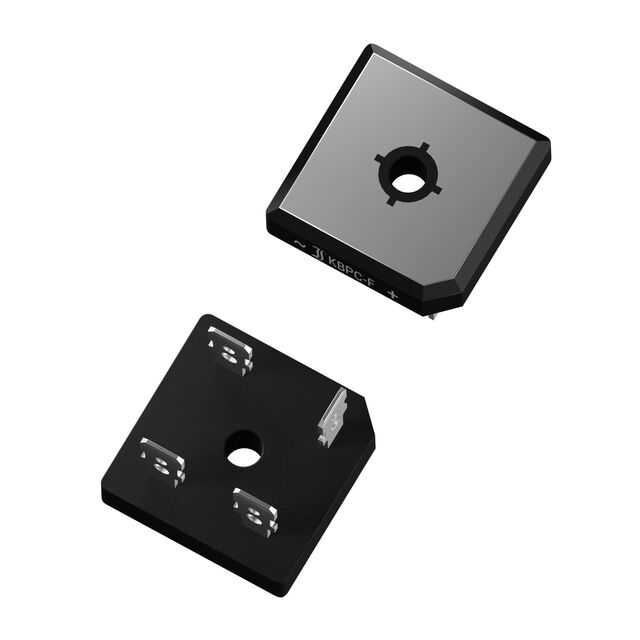

Diotec Semiconductor KBPC10/15/2500WP	10 µA	Single Phase	KBPC WP		Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A	50 V
Diotec Semiconductor KBPC10/15/2502WP	10 ÁA	Single Phase	KBPC WP	200 V	Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A
Diotec Semiconductor KBPC10/15/2514WP	10 µA	Single Phase	KBPC WP	1.4 kV	Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A
Diotec Semiconductor KBPC10/15/2512WP	10 µA	Single Phase	KBPC WP	1.2 kV	Standard	1.2 V	-50 °C	150 °C	Through Hole	4-Square KBPC WP	25 A
