SS-37000 Series

Catalog

MODULAR CONNECTORS / ETHERNET CONNECTORS MODULAR PLUG CAT5E 8P 8C UNSHIELDED .036-.042 CONDUCTORS

Part	Housing Material	Contact Finish	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Termination	Cable Type	Connector Type	Color	Ratings	Number of Positions/Contacts	Length [x]	Length [x]	Shielding	Current Rating (Amps)	Voltage Rating

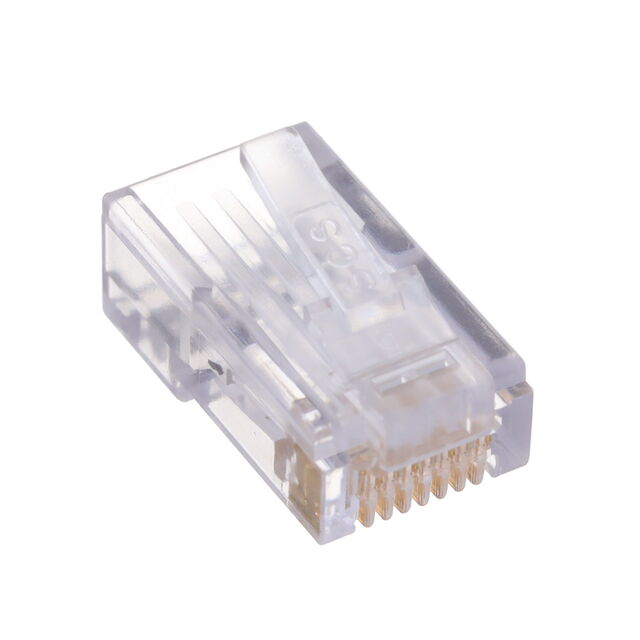

Bel Fuse Inc. SS-37000-006	Polycarbonate (PC)	Gold	Phosphor Bronze	50 µin	1.27 µm	IDC	Flat Oval Cable Solid or Stranded Wires	Plug	Translucent - Clear	Cat5e	8p8c (RJ45 Ethernet)	22.48 mm	0.885 in	Unshielded

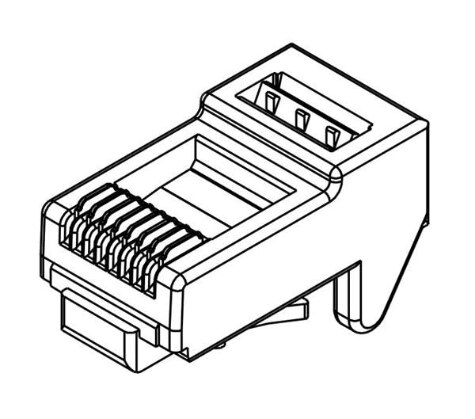

Bel Fuse Inc. SS-37000-001	Polycarbonate (PC)	Gold	Phosphor Bronze	30 Áin	0.76 Ám	IDC	Round Cable Solid or Stranded Wires	Plug	Translucent - Clear	Cat5e	8p8c (RJ45 Ethernet)	22.48 mm	0.885 in	Unshielded	1.5 A	150 VDC

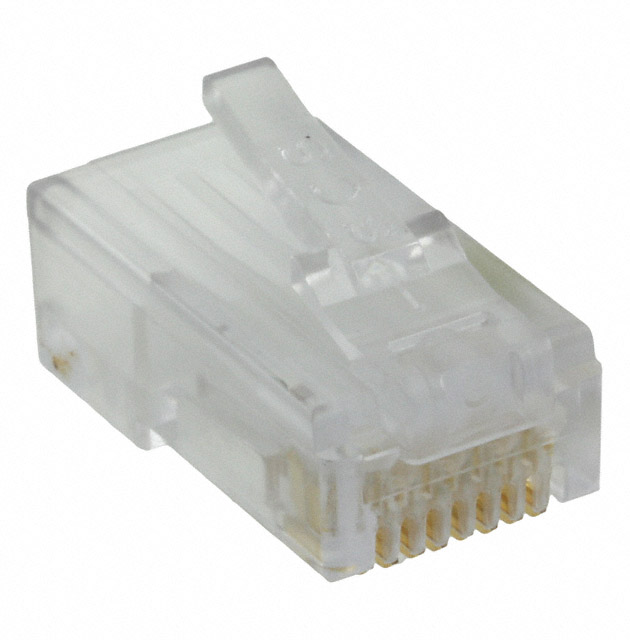

Bel Fuse Inc. SS-37000-009	Polycarbonate (PC)	Gold	Phosphor Bronze	50 µin	1.27 µm	IDC	Round Cable Solid or Stranded Wires	Plug	Translucent - Clear	Cat5e	8p8c (RJ45 Ethernet)	22.48 mm	0.885 in	Unshielded	1.5 A	150 VDC
Bel Fuse Inc. SS-37000-004	Polycarbonate (PC)	Gold	Phosphor Bronze	50 µin	1.27 µm	IDC	Round Cable Solid or Stranded Wires	Plug	Translucent - Clear	Cat5e	8p8c (RJ45 Ethernet)	22.45 mm	0.884 in	Unshielded	1.5 A	150 VDC
Bel Fuse Inc. SS-37000-003	Polycarbonate (PC)	Gold	Phosphor Bronze	50 µin	1.27 µm	IDC	Round Cable Solid or Stranded Wires	Plug	Translucent - Clear	Cat5e	8p8c (RJ45 Ethernet)	22.48 mm	0.885 in	Unshielded	1.5 A	150 VDC
