2355825 Series

Catalog

MEZALOK, SOCKET, 114 P, 12 MM, 5

Part	Pitch [x]	Pitch [x]	Number of Positions	Connector Type	Features	Height Above Board [z]	Height Above Board [z]	Contact Finish	Mounting Type	Contact Finish Thickness	Contact Finish Thickness	Number of Rows	Mated Stacking Heights	Mated Stacking Heights [z]	Height Above Board	Height Above Board

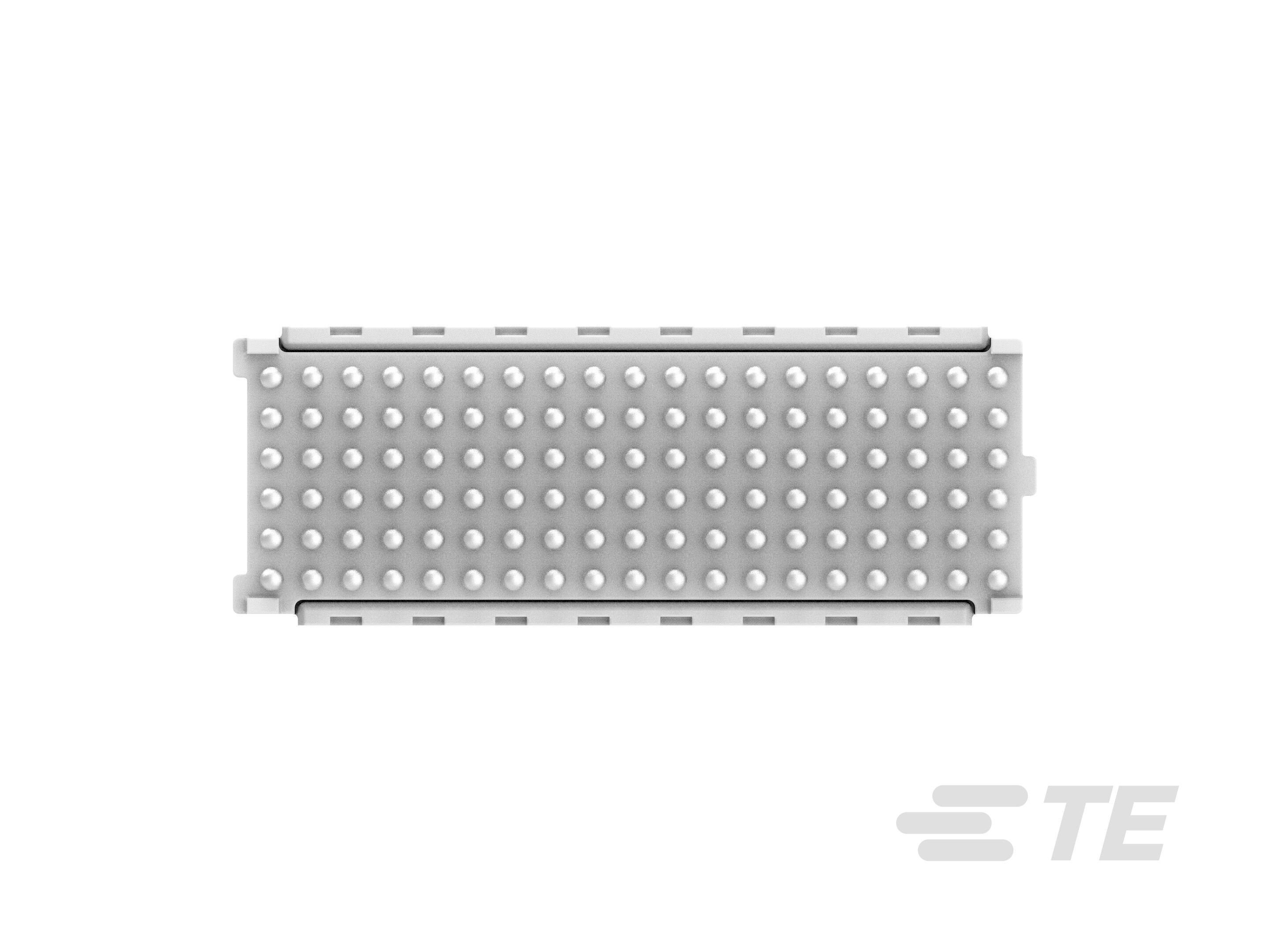

TE Connectivity Aerospace, Defense and Marine 2355825-4	0.05 in	1.27 mm	114	Array Female Sockets	Pick and Place	8 mm	0.315 in	Gold	Surface Mount	50 µin	1.27 µm	6	12 mm
TE Connectivity Aerospace, Defense and Marine 1-2355825-7	0.05 in	1.27 mm	114	Array Female Sockets	Pick and Place	13 mm	0.512 in	Gold	Surface Mount	50 µin	1.27 µm	6		17 mm

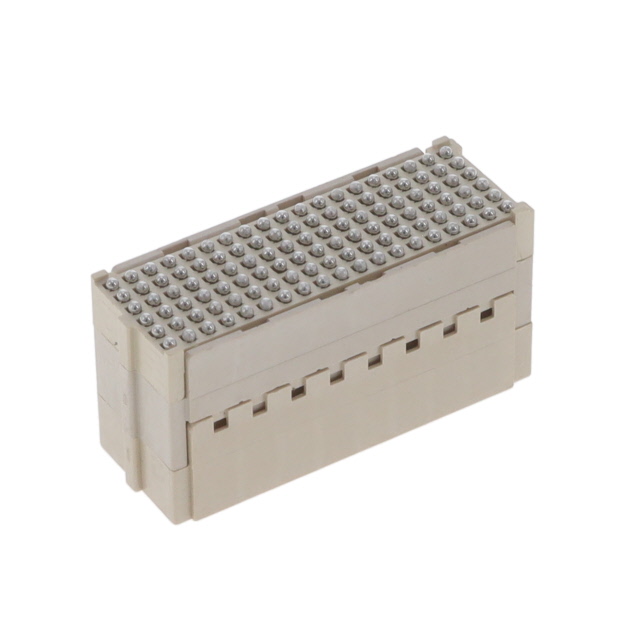

TE Connectivity Aerospace, Defense and Marine 1-2355825-8	0.05 in	1.27 mm	114	Array Female Sockets	Pick and Place	13 mm	0.512 in	Gold	Surface Mount	50 µin	1.27 µm	6		17 mm
TE Connectivity Aerospace, Defense and Marine 2355825-9	0.05 in	1.27 mm	114	Array Female Sockets	Pick and Place	14 mm	0.551 "	Gold	Surface Mount	50 µin	1.27 µm	6	18 mm

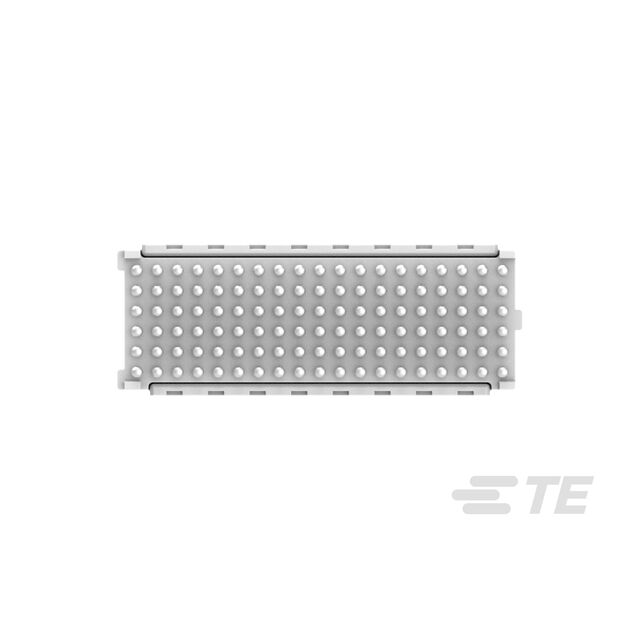

TE Connectivity Aerospace, Defense and Marine 2355825-2	0.05 in	1.27 mm	114	Array Female Sockets	Pick and Place			Gold	Surface Mount	50 µin	1.27 µm	6	10 mm		6 mm	0.236 in
