G-INS-PG11 Series
Manufacturer: Phoenix Contact
Beta
⌘K

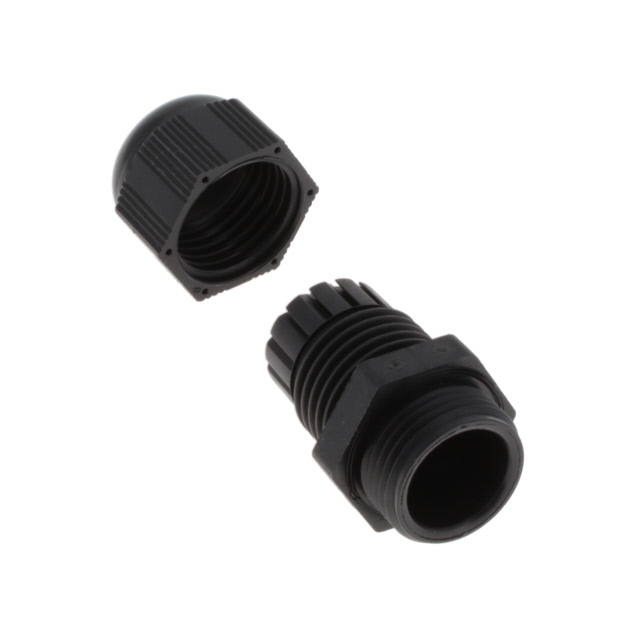

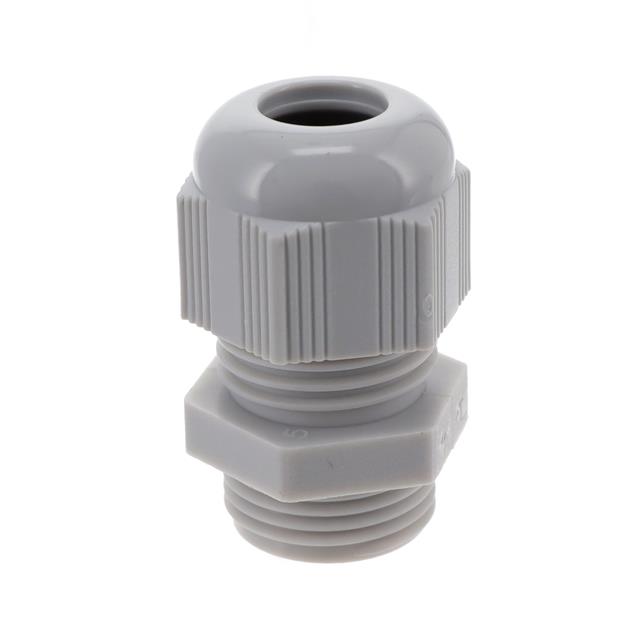

CABLE GLAND 5-10MM PG11 POLYAMID
| Part | Color | Thread Length | Thread Length | Type | Outside Cable Diameter (Max) [Max] [diameter] | Outside Cable Diameter (Max) [Max] [diameter] | Thread Size | Outside Cable Diameter (Min) [Min] [diameter] | Outside Cable Diameter (Min) [Min] [diameter] | Material | Ingress Protection | Includes | Operating Temperature [Min] | Operating Temperature [Max] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Phoenix Contact | Gray | 0.315 " | 8 mm | Cable Gland | 10 mm | 0.394 in | PG11 | 0.197 in | 5 mm | Polyamide (PA) Nylon | IP66 IP68 | Seal | -40 C | 100 °C |
 Phoenix Contact | Black | 0.315 " | 8 mm | Cable Gland | 10 mm | 0.394 in | PG11 | 0.197 in | 5 mm | Polyamide (PA) Nylon | IP68 - Dust Tight Waterproof | Seal | -40 C | 100 °C |
 Phoenix Contact | Gray | 0.315 " | 8 mm | Cable Gland | 10 mm | 0.394 in | PG11 | 0.197 in | 5 mm | Polyamide (PA) Nylon | IP68 - Dust Tight Waterproof | Seal | -40 C | 100 °C |
