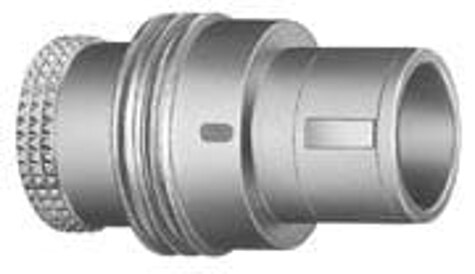

FFG.0B Series
Manufacturer: LEMO
Catalog
CONN PLUG MALE 4P GOLD SLDR CUP
| Part | Current Rating (Amps) | Fastening Type | Shell Material | Shielding | Color | Primary Material | Operating Temperature [Min] | Operating Temperature [Max] | Backshell Material, Plating | Ingress Protection | Number of Positions | Material Flammability Rating | Features | Insert Material | Contact Finish Thickness - Mating [custom] | Contact Finish Thickness - Mating [custom] | Orientation [custom] | Contact Material | Cable Opening [Min] | Cable Opening [Max] | Shell Finish | Mounting Type | Connector Type | Shell Size - Insert | Contact Finish - Mating | Cable Opening | Cable Opening | Termination | Cable Opening [Min] | Cable Opening [Max] | Cable Opening [Max] | Cable Opening [Min] | Shell Size - Insert [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
7 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 4 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.091 in 2.3 mm | 0.126 in 3.2 mm | Chrome | Free Hanging (In-Line) | Plug Male Pins | 304 | Gold | |||||||||
10 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 2 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 302 | Gold | 0.13 in | 3.3 mm 4.2 mm | ||||||||
7 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 4 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 " | 0.205 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 304 | Gold | Crimp | 4.2 mm | 5.2 mm | ||||||
2.5 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 6 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 " | 0.205 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 306 | Gold | 4.2 mm | 5.2 mm | |||||||
6.5 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 5 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 305 | Gold | 0.13 in | 3.3 mm 4.2 mm | ||||||||
8 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 " | 0.205 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 303 | Gold | 4.2 mm | 5.2 mm | ||||||||
6.5 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 5 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.055 in | 0.087 " | Chrome | Free Hanging (In-Line) | Plug Male Pins | 305 | Gold | 1.4 mm | 2.2 mm | |||||||
10 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 2 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | Chrome | Free Hanging (In-Line) | Plug Male Pins | 302 | Gold | 0.126 " | 0.165 " | 4.2 mm | 3.2 mm | |||||||
7 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 4 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.165 " | 0.205 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | 304 | Gold | 4.2 mm | 5.2 mm | |||||||
2.5 A | Push-Pull | Brass | Shielded | Silver | Metal | -55 C | 250 °C | Brass Chrome | IP50 - Dust Protected | 7 | UL94 V-0 | Backshell | Polyetheretherketone (PEEK) | 39.4 µin | 1 µm | G | Brass | 0.209 in | 0.22 in | Chrome | Free Hanging (In-Line) | Plug Male Pins | Gold | 5.3 mm | 5.6 mm | 307 |
