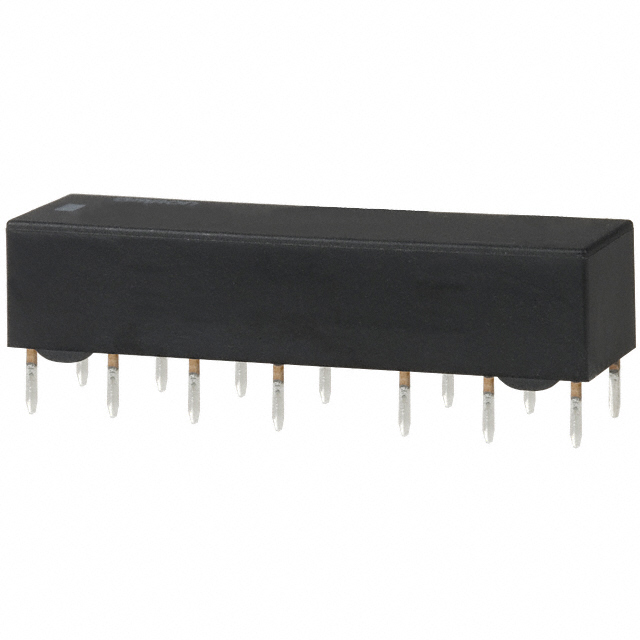

G6A-434 Series
Manufacturer: Omron Electronics Inc-EMC Div
Beta
⌘K
RELAY GEN PURPOSE 4PDT 1A 12V
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Contact Form | Coil Voltage | Contact Rating (Current) | Contact Material | Coil Resistance | Must Operate Voltage | Switching Voltage | Load - Max Switching | Relay Type | Termination Style | Coil Current | Must Release Voltage | Release Time | Coil Type | Mounting Type | Operate Time |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 12 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 360 Ohms | 8.4 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 33.3 mA | 1.2 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 48 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 5.76 kOhms | 33.6 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 8.3 mA | 4.8 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 5 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 69 Ohms | 3.5 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 72.5 mA | 0.5 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 24 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 1440 Ohms | 16.8 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 16.7 mA | 2.4 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 12 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 400 Ohms | 8.4 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 30 mA | 1.2 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 24 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 2.88 kOhms | 16.8 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 8.3 mA | 2.4 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 48 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 6.4 kOhms | 33.6 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 7.5 mA | 4.8 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
Omron Electronics Inc-EMC Div | -40 °C | 70 °C | 4PDT (4 Form C) | 9 VDC | 1 A | Gold (Au) Silver Palladium (AgPd) | 225 Ohms | 6.3 VDC | 220 VDC 250 VAC | 220 W 250 VA | General Purpose | PC Pin | 40 mA | 0.9 VDC | 5 ms | Non Latching | Through Hole | 7 ms |
