63440 Series

Catalog

CONN RCPT 6POS 0.079 GOLD PCB

Part	Contact Length - Post	Contact Length - Post	Number of Positions Loaded	Number of Positions	Insulation Material	Contact Shape	Insulation Height	Insulation Height	Connector Type	Termination	Pitch - Mating [x]	Pitch - Mating [x]	Mounting Type	Fastening Type	Number of Rows	Row Spacing - Mating	Row Spacing - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish - Mating	Insulation Color	Contact Type	Contact Material	Material Flammability Rating	Contact Finish - Post	Number of Positions Loaded [custom]

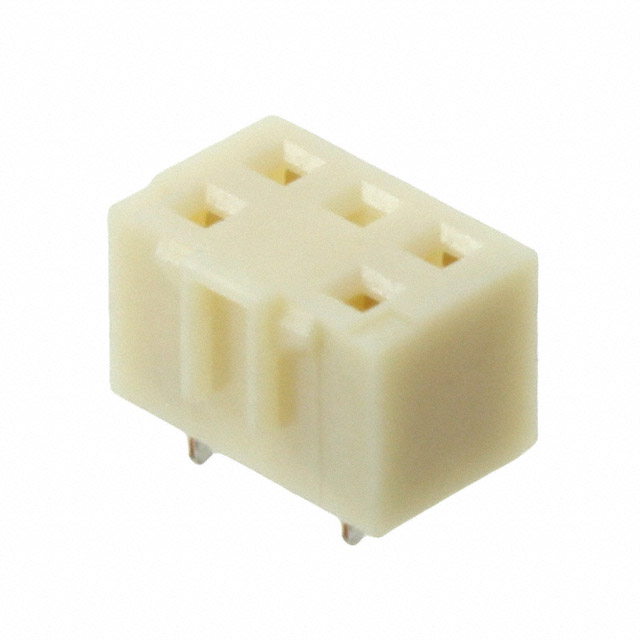

Amphenol ICC (FCI) 63440-004LF	1.2 mm	0.047 in	4	6	Polycyclohexylenedimethylene Terephthalate (PCT)	Square	0.177 in	4.5 mm	Receptacle	Solder	0.079 in	2 mm	Through Hole	Latch Lock	2	0.079 in	2 mm	0.203 Ám	8 Áin	Gold	Beige	Female Socket	Phosphor Bronze	UL94 V-0	Tin
Amphenol ICC (FCI) 63440-002LF	1.2 mm	0.047 in		6	Polycyclohexylenedimethylene Terephthalate (PCT)	Square	0.177 in	4.5 mm	Receptacle	Solder	0.079 in	2 mm	Through Hole	Latch Lock	2	0.079 in	2 mm	0.203 Ám	8 Áin	Gold	Beige	Female Socket	Phosphor Bronze	UL94 V-0	Tin	5
Amphenol ICC (FCI) 63440-001LF	1.2 mm	0.047 in	28		Polycyclohexylenedimethylene Terephthalate (PCT)	Square	0.177 in	4.5 mm	Receptacle	Solder	0.079 in	2 mm	Through Hole	Latch Lock	2	0.079 in	2 mm	0.203 Ám	8 Áin	Gold	Beige	Female Socket	Phosphor Bronze	UL94 V-0	Tin
Amphenol ICC (FCI) 63440-107TRNLF	1.2 mm	0.047 in	30		Polycyclohexylenedimethylene Terephthalate (PCT)	Square	0.177 in	4.5 mm	Receptacle	Solder	0.079 in	2 mm	Through Hole	Latch Lock	2	0.079 in	2 mm	0.76 Ám	30 Áin	Gold	Beige	Female Socket	Phosphor Bronze	UL94 V-0	Tin
