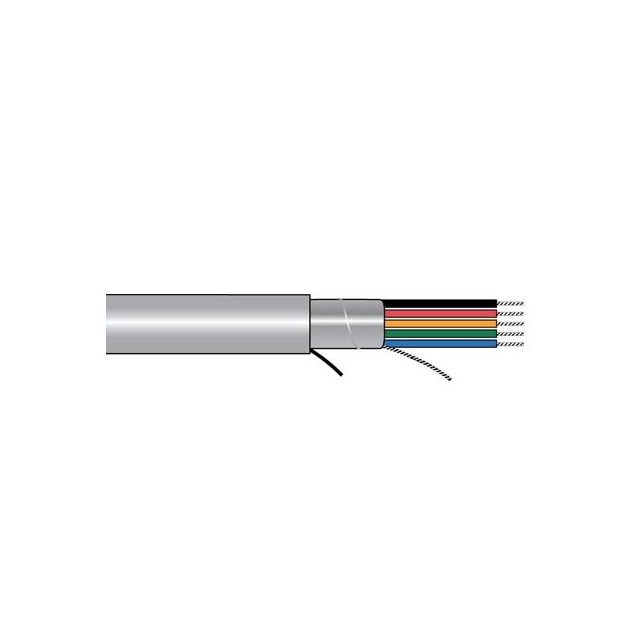

M64817 Series
Manufacturer: ALPHA WIRE
Beta
⌘K
MULTI-CONDUCTOR CABLES 20 AWG FEP 100 FT SPOOL SLATE
| Part | Shield Coverage | Shield Material | Jacket (Insulation) Diameter [diameter] | Jacket (Insulation) Diameter [diameter] | Length [x] | Length [x] | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Shield Type | Wire Gauge | Conductor Insulation | Jacket Color | Features | Number of Conductors | Conductor Material | Conductor Strand [custom] | Conductor Strand [custom] | Voltage | Cable Type | Jacket (Insulation) Material | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ALPHA WIRE | 100 % | Aluminum | 0.132 " | 3.35 mm | 100 ft | 30.5 m | 0.0098 " | 0.25 mm | 150 °C | -20 ░C | Foil | 20 AWG | Fluorinated Ethylene-Propylene (FEP) | Slate | Drain Wire | 3 | Copper Tinned | 28 AWG | 7 | 300 VDC | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | ||
 ALPHA WIRE | 100 % | Aluminum | 0.132 " | 3.35 mm | 0.0098 " | 0.25 mm | 150 °C | -20 ░C | Foil | 20 AWG | Fluorinated Ethylene-Propylene (FEP) | Slate | Drain Wire | 3 | Copper Tinned | 28 AWG | 7 | 300 VDC | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | 304.8 m | 1000 ft | ||
ALPHA WIRE | 100 % | Aluminum | 0.132 " | 3.35 mm | 0.0098 " | 0.25 mm | 150 °C | -20 ░C | Foil | 20 AWG | Fluorinated Ethylene-Propylene (FEP) | Slate | Drain Wire | 3 | Copper Tinned | 28 AWG | 7 | 300 VDC | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | 152.4 m | 500 ft | ||
ALPHA WIRE | 100 % | Aluminum | 0.132 " | 3.35 mm | 0.0098 " | 0.25 mm | 150 °C | -20 ░C | Foil | 20 AWG | Fluorinated Ethylene-Propylene (FEP) | Slate | Drain Wire | 3 | Copper Tinned | 28 AWG | 7 | 300 VDC | Multi-Conductor | Fluorinated Ethylene-Propylene (FEP) | 914.4 m | 3000 ' |
