160490 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

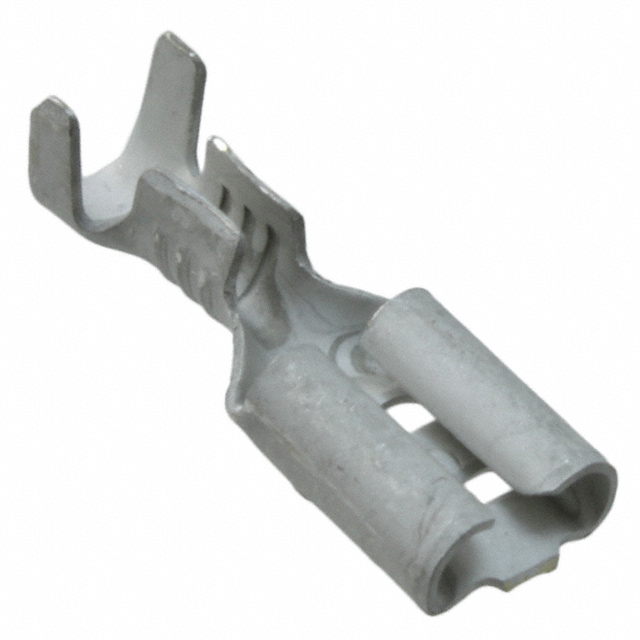

CONN QC RCPT 15.5-20AWG 0.187
| Part | Terminal Type | Mounting Type | Wire Gauge [Max] | Wire Gauge [Min] | Gender | Termination | Length - Overall [x] | Length - Overall [x] | Tab Width | Tab Width | Contact Material | Insulation | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Tab Thickness | Tab Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TE Connectivity Raychem Cable Protection | Standard | Free Hanging (In-Line) | 20 AWG | 16 AWG | Female | Crimp | 0.63 " | 16 mm | 4.75 mm | 0.187 in | Brass | Non-Insulated | 0.091 in | 3.3 mm | 2.31 mm | 0.13 " | 0.032 in | 0.81 mm |
