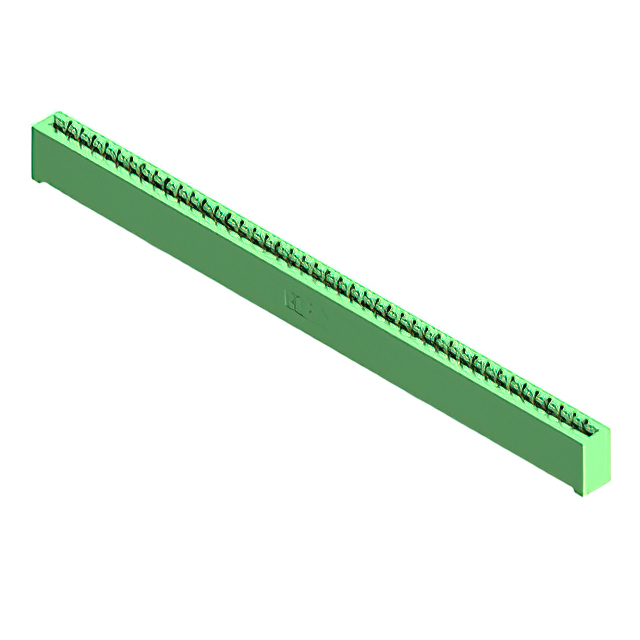

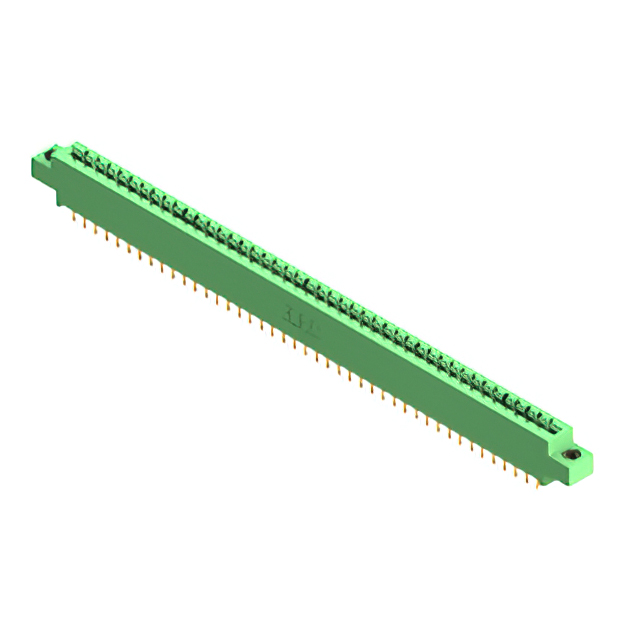

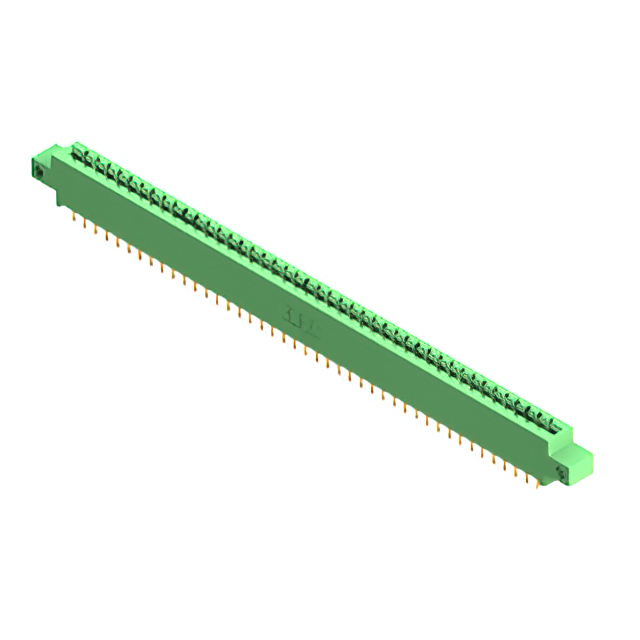

837-043 Series
Manufacturer: EDAC Inc.
Catalog
CONN EDGE SGL FMALE 43POS 0.156
...
| Part | Termination Rows | Read Out | Termination | Contact Finish | Contact Type | Pitch [x] | Pitch [x] | Flange Feature | Contact Finish Thickness | Contact Finish Thickness | Operating Temperature [Max] | Operating Temperature [Min] | Card Type | Card Thickness [Min] | Card Thickness [Min] | Card Thickness [Max] | Card Thickness [Max] | Color | Gender | Number of Rows | Material - Insulation | Contact Material | Number of Positions/Bay/Row [custom] | Number of Positions | Mounting Type | Flange Feature | Flange Feature | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Flush Mount Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 3.25 mm | 0.128 in | ||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Top Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 0.156 in | 3.96 mm | ||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Side Mount Opening Unthreaded | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | 3.25 mm | 0.128 in | ||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 4-40 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | ||||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | M3 Threaded Insert Top Mount Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | ||||
 EDAC Inc. | 1 | Single | Wire Wrap | Gold | Cantilever | 0.156 in | 3.96 mm | Flush Mount M3 Threaded Insert Top Opening | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | ||||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole | |||||
 EDAC Inc. | 1 | Single | Solder | Gold | Cantilever | 0.156 in | 3.96 mm | Floating Bobbin Flush Mount | 10 Áin | 0.25 Ám | 125 °C | -40 °C | Non Specified - Single Edge | 1.37 mm | 0.054 " | 1.78 mm | 0.07 in | Green | Female | 1 | Diallyl Phthalate (DAP) | Copper Alloy | 43 | 43 | Through Hole Right Angle | 0.116 in | 2.95 mm |
