UCC12040 Series

Catalog

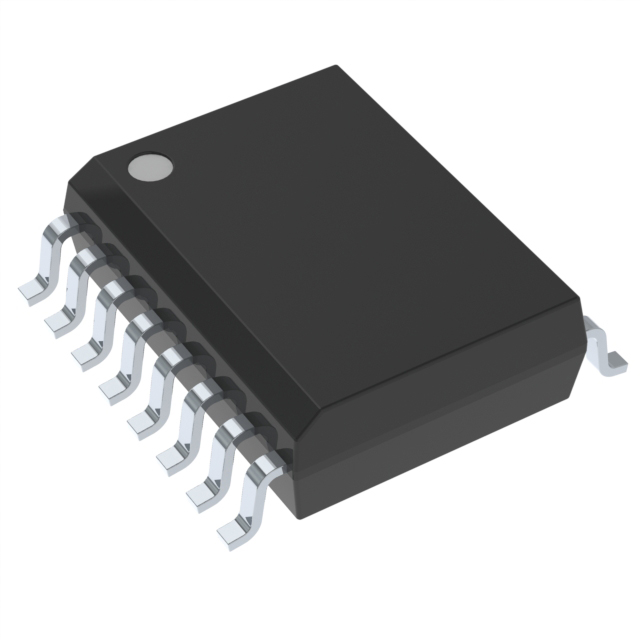

MODULE DC-DC 5VIN 1-OUT 3.3V/5V 0.1A 0.5W 16-PIN SO-MOD T/R

Part	Voltage - Input (Max) [Max]	Voltage - Output 1 [custom]	Mounting Type	Type	Supplier Device Package	Control Features	Voltage - Isolation	Package / Case	Package / Case	Package / Case	Efficiency	Voltage - Input (Min) [Min]	Approval Agency	Applications	Power (Watts)	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Current - Output (Max)	Number of Outputs	Operating Temperature [Min]	Operating Temperature [Max]
Texas Instruments UCC12040DVER	5.5 V	3.3 V 5 V	Surface Mount	Isolated Module	16-SOIC	Active High Enable	3000 V	16-SOIC	7.5 mm	0.295 "	60 %	4.5 V	CQC TUV UL VDE	ITE (Commercial) Laboratory Medical	0.5 W	2.7 mm	7.5 mm	0.1 in	0.41 in	10.3 mm	0.3 "	100 mA 140 mA	1	-40 °C	125 °C
Texas Instruments UCC12040DVE	5.5 V	3.3 V 5 V	Surface Mount	Isolated Module	16-SOIC	Active High Enable	3000 V	16-SOIC	7.5 mm	0.295 "	60 %	4.5 V	CQC TUV UL VDE	ITE (Commercial) Laboratory Medical	0.5 W	2.7 mm	7.5 mm	0.1 in	0.41 in	10.3 mm	0.3 "	100 mA 140 mA	1	-40 °C	125 °C
