LPH1-03 Series
Manufacturer: New Energy
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

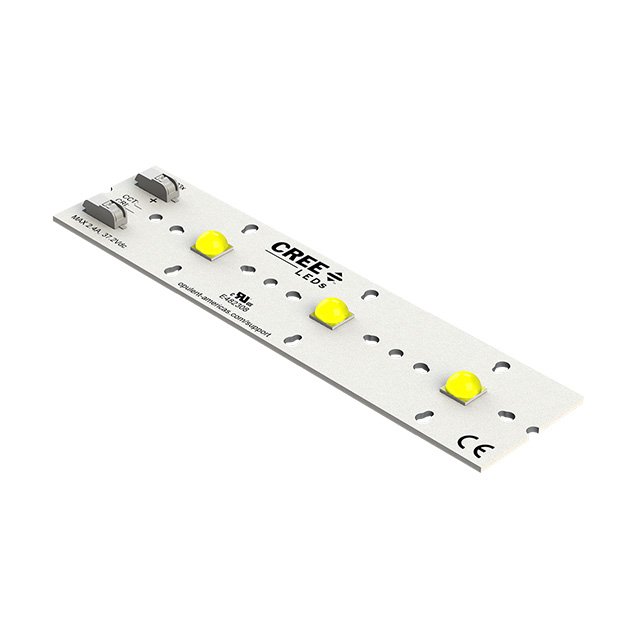

LED MOD XHP70.2 WH LNR STR 2700K
| Part | Type | Configuration | Current - Max | Lumens/Watt | Lens Type | Color | Size / Dimension Width | Size / Dimension Length | Temperature - Test | Current - Test | Voltage - Forward (Vf) (Typ) | CCT (K) | CCT Description | Luminous Flux (Typical) | CRI (Color Rendering Index) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 New Energy | LED Module | Linear Light Strip | 2.4 A | 126 lm/W | Domed | Warm White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 2700 K | 3-Step MacAdam Ellipse | 4455 lm | 80 |
New Energy | LED Module | Linear Light Strip | 2.4 A | 156 lm/W | Domed | Cool White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 5000 K | 5-Step MacAdam Ellipse | 5490 lm | 70 |
New Energy | LED Module | Linear Light Strip | 2.4 A | 156 lm/W | Domed | Cool White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 5700 K | 5490 lm | 70 | |
New Energy | LED Module | Linear Light Strip | 2.4 A | 156 lm/W | Domed | Neutral White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 4000 K | 5-Step MacAdam Ellipse | 5490 lm | 80 |
New Energy | LED Module | Linear Light Strip | 2.4 A | 145 lm/W | Domed | Warm White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 3000 K | 5-Step MacAdam Ellipse | 5130 lm | 80 |
New Energy | LED Module | Linear Light Strip | 2.4 A | 156 lm/W | Domed | Cool White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 5700 K | 5490 lm | 80 | |
New Energy | LED Module | Linear Light Strip | 2.4 A | 156 lm/W | Domed | Cool White | 32.99 mm | 5.2 in | 85 °C | 1.05 A | 33.6 V | 5000 K | 5-Step MacAdam Ellipse | 5490 lm | 80 |
